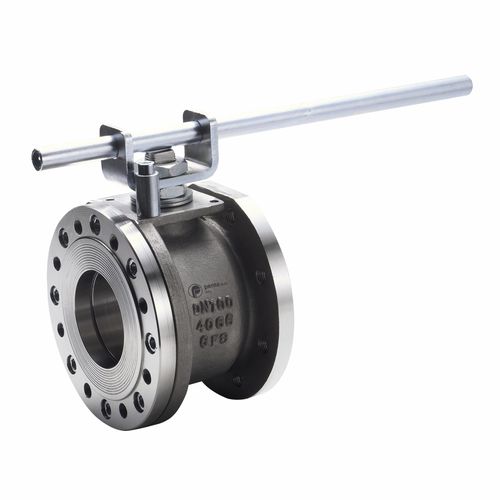

Floating ball valve AP10leverpneumaticflow control
Add to favorites
Compare this product
Characteristics
- Type
- floating ball
- Operation
- lever, pneumatic
- Function
- flow control, blanketing
- Media
- for oil, for chemical products, for fuel
- Body
- wafer, stainless steel, carbon steel
- Applications
- for industrial applications, for the chemical industry, process, for the petroleum industry, for boiler
- Number of channels
- 2-channel
- Other characteristics
- ANSI, bidirectional, high-temperature, unidirectional
- DN
Max.: 6 in
Min.: 0.5 in
- Pressure
Max.: 160 bar
(2,320.6 psi)Min.: 10 bar
(145 psi)- Temperature
Max.: 400 °C
(752 °F)Min.: -46 °C
(-51 °F)
Description
Metal seated Wafer Ball Valve construction with floating ball for high temperature services. There are three valve models:
● For low pressure services (AP10)
● For high pressure services (AP10HP)
● Ball valve with heating jacket (AP11)
Each model can be provided as one direction or bidirectional.
The possibility to equip the valve with heating jacket let us extend the range of application also to services with fluids that becoming solid to ambient temperature.
Wafer ball valve construction can be provided with a 100mm stem extension (or higher, on demand). Live Loaded Design stem packing is provide.
