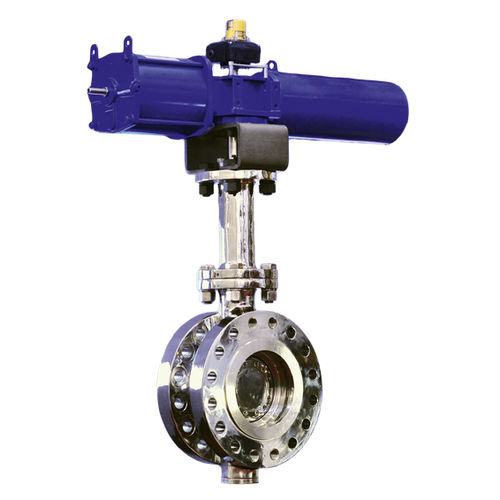

Triple-offset valve 30000 seriesbutterflyelectricflow control
Add to favorites
Compare this product
Characteristics
- Type
- butterfly
- Operation
- electric
- Function
- flow control, pressure-control, shut-off, isolation
- Media
- for hydrocarbons, for LNG
- Body
- trunnion, triple-offset, 1-piece, rugged
- Applications
- cryogenic
- Other characteristics
- bidirectional
- DN
Min.: 80 mm
(3.15 in)Max.: 1,800 mm
(70.866 in)- Pressure
160 bar
(2,320.6 psi)- Temperature
Min.: -254 °C
(-425 °F)Max.: 250 °C
(482 °F)
Description
A virtually maintenance-free valve with tightness, operability and torque demand unaffected by cryogenic conditions and severe temperature fluctuations
Available across the full range of body styles and suitable for isolation, flow and pressure control, ON-OFF, emergency/safety operations, HIPPS and major equipment protective functions in LNG liquefaction, storage and transport, air separation, hydrocarbon cryogenic distillation and aerospace applications. Fluids Series 30,000 cryogenic valves are suitable for processes containing: Liquid propane, ethane, methane, oxygen, liquid nitrogen, liquid hydrogen, glycol, ethylene glycol, ethylene.
Other Pentair Valves & Controls products
Triple Offset Valves
