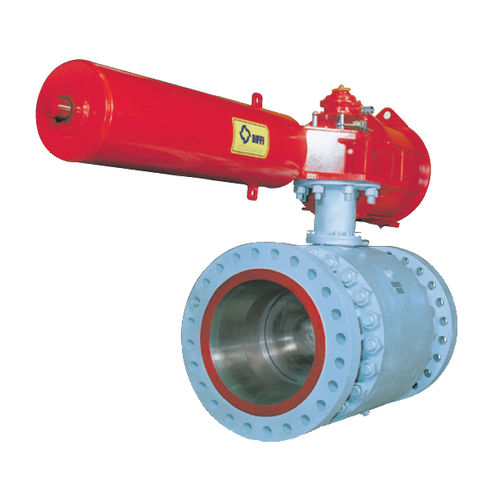

Trunnion-mounted valve HPA, HRA, DBballelectrically-actuatedhydraulically-operated
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- electrically-actuated, hydraulically-operated, pneumatically-operated
- Function
- double block-and-bleed
- Media
- for oil, for gas
- Body
- flange, 3-piece, soft-seat, weld, trunnion-mounted
- Other characteristics
- bidirectional, anti-static
- DN
Min.: 50 mm
(1.969 in)Max.: 1,500 mm
(59.055 in)- Pressure
400 bar
(5,801.5 psi)- Temperature
Min.: -196 °C
(-321 °F)Max.: 450 °C
(842 °F)
Description
Trunnion mounted split body ball valves, double block and bleed function, for oil and gas standard and severe applications
The FCT Split Body trunnion mounted ball valves have been designed for severe oil and gas applications, including production, upstream processing, transportation and distribution, refining and petrochemical, as well as power plants, water transportation, sea water desalination and chemical applications.
