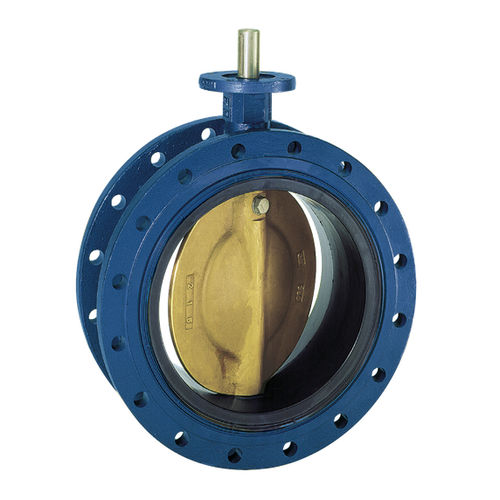

Butterfly valve 55
shut-offfor waterdouble-flange

butterfly valve
butterfly valve
Add to favorites
Compare this product


Characteristics

Type
butterfly
Function
shut-off
Media
for water
Body
double-flange, concentric
Other characteristics
high-performance, bidirectional
DN

Max.: 1,200 mm
(47.244 in)

Min.: 100 mm
(3.937 in)

Pressure

16 bar
(232.1 psi)

Temperature

Max.: 120 °C
(248 °F)

Min.: -40 °C
(-40 °F)

Description

Double flanged valve design for services in the water treatment industry • Waterwork industries where a double flanged valve is required. • Fire fighting systems. • Sea water applications. • For drinking water applications a certified EPDM compound and certified coatings available. • Approvals: KIWA, KTW, WRC, PED/CE, FDA.
