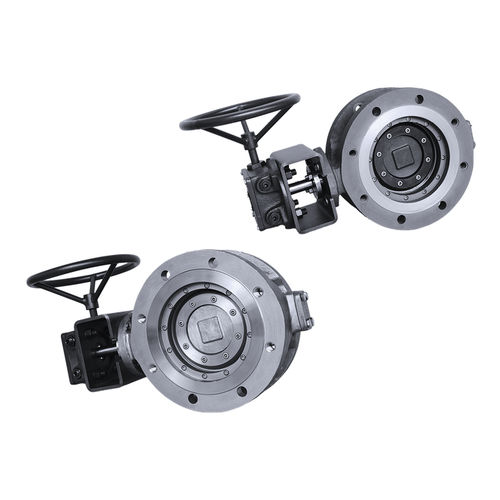

Triple-offset valve 30-RS seriesbutterflywith handwheelisolation
Add to favorites
Compare this product
Characteristics
- Type
- butterfly
- Operation
- with handwheel
- Function
- isolation
- Media
- for oil, for gas
- Body
- triple-offset, metal
- DN
Max.: 600 mm
(23.622 in)Min.: 80 mm
(3.15 in)- Temperature
Max.: 350 °C
(662 °F)Min.: -29 °C
(-20 °F)
Description
A smarter solution for premium performance, the Vanessa Series 30-RS offers zero leakage* isolation across a wide range of general applications. Vanessa Series 30-RS valves utilize a positive pressure side bolted-on seat design providing high quality, low maintenance and improved safety compared to other bolted-on seat triple offset valves.
Industries: Oil and gas (storage, tank farm, airport tankage, import/export terminal, chemical storage), process (utilities inside refineries, chemical and petrochemical plants; HVAC, sugar, ethanol, pulp and paper) Fluids: Hydrocarbons (crude oil, naphtha, diesel, jet fuel, kerosene, gasoline, sweet gases), utilities (water, wastewater, air, steam, nitrogen, thermal oil), chemicals (excluding corrosive/polymerizing/crystallizing/erosive chemicals), ethanol, black liquor, steam, water
Other Pentair Valves & Controls products

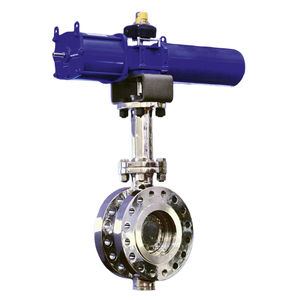

Triple Offset Valves
