Maximum productivity thanks to optimised workpiece handling
Compact design with integrated, fast-rotating rotary table
Basic system characteristics
• Highest throughput by extraction and assembly simultaneously to the marking process
• Compact design with fast rotating 600mm diameter rotary table
• Laser Class 1 including the required smoke extraction
• Automatic loading and unloading room lighting for optimized intuitive operation
• Center Feedthrough for electrical/pneumatic clamping devices
• Quick-Change device for customer-specific workpiece shots
• Optional camera solutions for reading DMC codes or automatic testing of product properties.

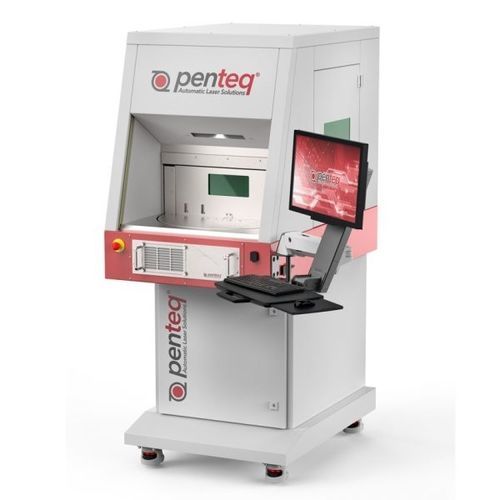

ROTARY TABLE-LASER SYSTEM LG200 RT
The Penteq rotary table laser system LG200 RT is a compact and user-optimised system of laser Class 1 for the economic labelling of workpieces from different materials such as: steel, stainless steel, aluminium, anodized aluminium, brass and Numerous plastics for highest throughput.
SIMULTANEOUS LOADING AND UNLOADING
In the development of the LG200 RT Rotary Table Laser System, the highest possible productivity was the main focus.
This was achieved by a precise, very fast rotating rotary table. Thus, during the machining process, the removal of the labeled and the assembly with unlabeled parts can take place.
MASSIVE INDUSTRIAL DESIGN:
The robust and powder-coated steel construction of the protective cabin is designed as the complete system for long-term industrial use.
All components required for operation are included in the basic version.
The system has been specially designed for easy operation without prior knowledge.
