Communication gateway BASGLX-M1
EthernetBMSModbus

communication gateway
communication gateway
Add to favorites
Compare this product


Characteristics

Type
communication
Network
Ethernet, BMS, Modbus, BACnet

Description

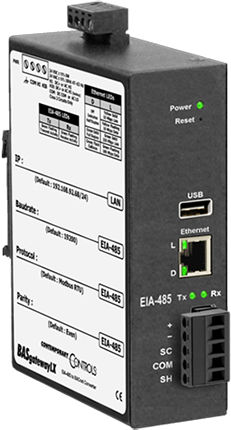

The BACnet Gateway facilitates communication between a Pertronic F120 fire alarm panel and a Building Management System (BMS). The gateway monitors data broadcast by the fire alarm panel and reports specific items to the BMS using the BACnet protocol. Options in the configuration software allow the gateway to be configured to create BACnet objects representing a wide range of data items from the fire alarm panel.The gateway system consists of a Contemporary Controls BASGatewayLX Gateway Module connected to a Pertronic Industries GPIB-M Modbus Interface. The system is normally installed inside the fire alarm cabinet. It connects to the BMS physical network via an Ethernet port. Features: BACnet interface between Pertronic F120A fire alarm system and building management system 10/100 Mbps Ethernet with auto-negotiation and Auto-MDIX Configurable to create BACnet objects representing various panel states such as: + Fire zone “Alarm” and “Isolate” states + Fire alarm system global status information including “Sprinkler”, “Evacuate”, along with fault and communication system status + Fire alarm system software entities such as "Brigade", "Smoke Alarm", “Call Point Alarm”, as specified in the panel configuration. (The F120A panel can be configured to broadcast data items selected from a large number of entities. Refer to the F120 panel and BASGLX-M1 documentation for details.)
