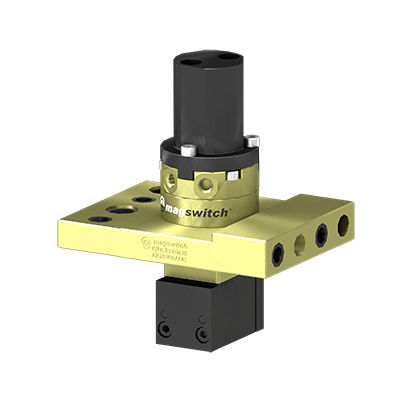

Holding magnet AR20 NAAMS

custom

The ‘AR’ contains a rectangular housing with removable pole shoes, which work well with irregularly shaped surfaces: pipes, cylinders, etc. This tool is the best choice when no flat area exists on the target. With three possible work faces, the tools provide tremendous flexibility for multiple end of arm applications. Temperature of the operated surface can reach 80°C for Classic versions and 220°C or higher for High Heat versions (please contact us of high temperture applications). Note: You may have to design and fabricate custom pole shoes depending on your application for optimal performances Double effect pneumatic actuator offering high duty cycle Custom pole shoes offer mechanical function integration capability Intrinsic safety thanks to 183° movement for natural lstop locking Benefits Limited maintenance costs Reduced cycle time Controlled integration costs Weight - 0,39 kg Max breakaway 1 - 28,6 kg Working Load 2 - 7,2 kg Optimal material thickness - 3,0 mm Max shear - 2,70 kg Overall Height - 98,5 mm Magnetic pole footprint - 26x22 mm
