Features
•DC braking with one-way rectification
•suitable for all asynchronous motors and for mono phase motors
•controlled by microcontroller
•easy mounting, also for retrofitting into existing plants
•wear-resistant and maintenance-free
•integrated braking contactor

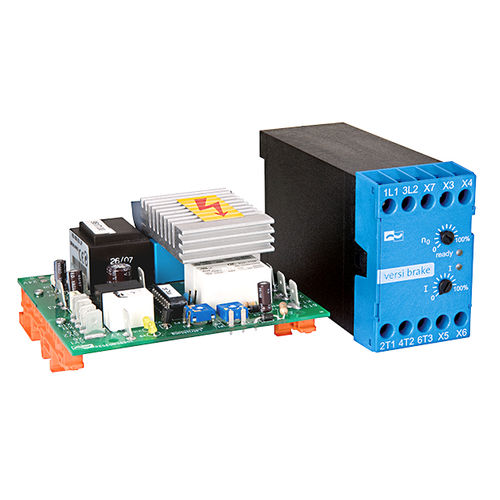

•printed circuit-board version with fault signaling contact
•for snap-on mounting onto 35mm DIN rail
•degree of protection: case version IP 20,
•printed circuit-board version IP 00
•meets trade assoc. requirements for PL = b,
•acc. to DIN EN ISO 13849-1
Functions
•start braking via detection of motor voltage
•and via motor contactor (double safety)
•overload protection
•braking current cutoff after motor standstill
•braking current control
•automatic remanence time optimization
•braking current infinitely adjustable 10-100%
•potential-free output for motor contactor
•interlocking during braking;
•also usable to energize the star contactor during braking
•standstill threshold adjustable,
•individual adaptable to different motor types
Preferred application areas
•saws
•conveyors
•woodworking machines
•grinding machines
•others
