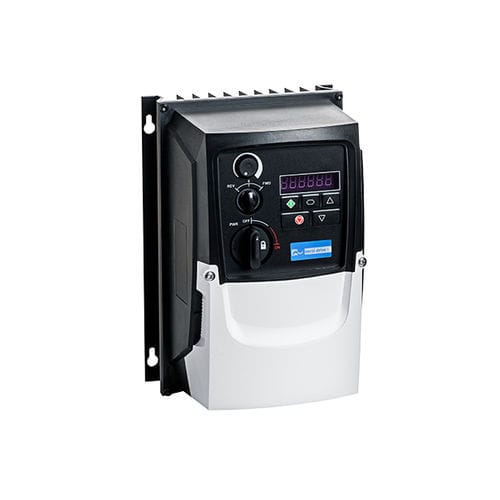

Single-phase AC drive VersiDrive i E3S
for motorsIP66programmable

single-phase AC drive
single-phase AC drive
Add to favorites
Compare this product


Characteristics

Type
single-phase
Applications
for motors
Protection class
IP66
Other characteristics
programmable, economical, Modbus, CANopen, miniature
Power

Min.: 370 W

Max.: 1,100 W

Intensity

4 A, 7 A, 11 A

Output frequency

Min.: 0 Hz

Max.: 120 Hz

Description

Features •small inverter for single-phase AC motors •suitable for capacitor and shaded pole motor •easy programming and connection •14 parameter for basic settings •precise digital control via push of a button •application macros (industrial, pumps and fan operation) •PTC input •adjustable fixed frequencies •max. rotating field frequency 120Hz •integrated braking chopper at 1,1kW •degree of protection IP66 •integrated mains filter •serial communication with Modbus RTU and CANopen Functions •control and setpoint entry via •terminals, operating unit and Bus-systems •PWM clock frequency 4 - 32kHz •DC braking •potential-free control and signalling contacts •150% overload for 60s •detailed trouble check via parameter „0“ •integrated PI controller •U/f characteristics control •„IP66S“ model with potentiometer, right-left switch and •line disconnecter Options : (please see accessories) •memory stick with copying function •remote control module (LED or OLED display) •RJ45 cable and cable splitter •braking resistors •software for parameterization Preferred application areas •electric pumps •heat pumps •vacuum pumps •ventilators and fans •travelling cranes •extraction systems •compressors •stirrers •centrifuges •saws •conveyors •woodworking machines •grinding machines •textile machines •packaging machines •printing machines •others
