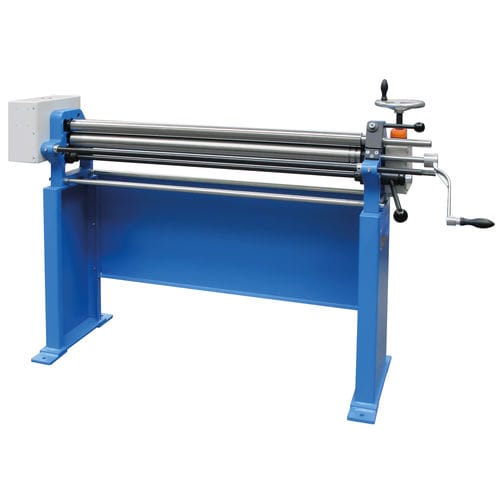

3-roller plate bending machine RM series

manual

The three roll rounding machines, manual design (RM), have proven over decades their high flexbility and reliability for professional craft and industrial use. The wide range of manual rolls ranges from very small and light, with the roll diameter of 20 mm and the length of just over 200 mm, up to the great with a roll diameter of 100 mm and a length of 2 meters. The rolls are arranged asymmetrically. Quick and easy removal of the finished tubes is facilitated by the forward swing-top roll. You can adjust the desired tube diameter by the screw adjustment of the rear roll and is supported by a mechanical display. Depending on the length, the roll can be rotated convex. Standard features: • Swing out of the top roll to the front by a quick fastener • Quick-adjustment of the lower roll • Snail-adjustment of the rear roll by a mech. digital display Special equipment • Seam in the upper roll • Wire core groove • Special rolls (hardened, coated, sanded, rubberized) • Lateral stop to round conical • Support plate with lateral stop
