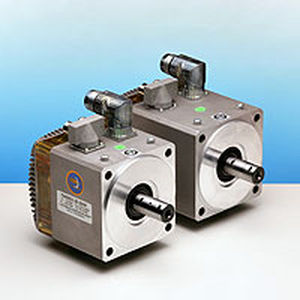

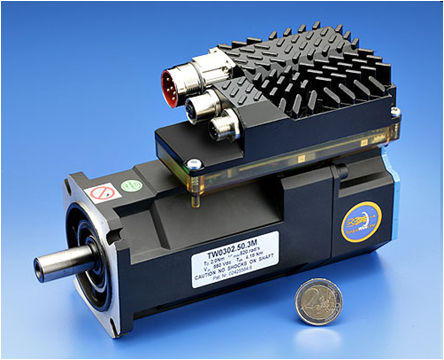

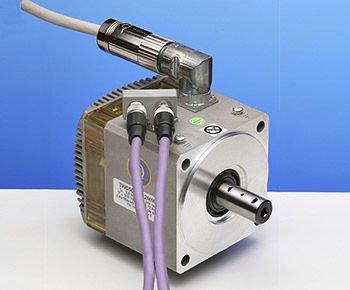

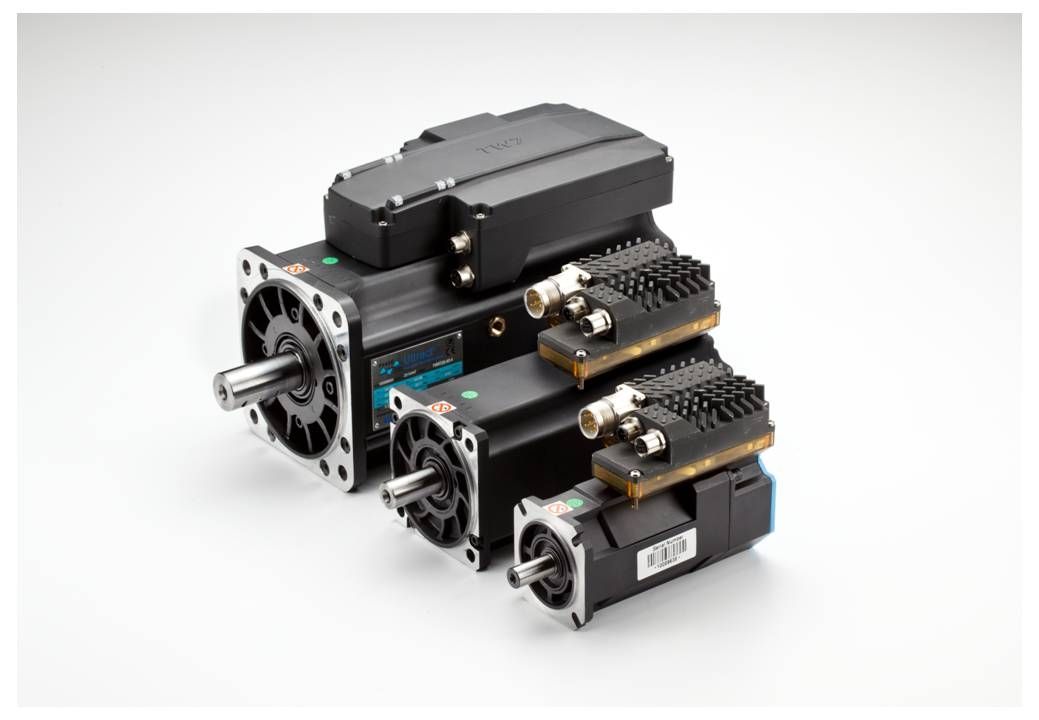

Brushless DC electric servo-motor with integrated motion controller
2.5 - 9 Nm, 350 - 550 Vdc | Ultract TW
Phase Motion Control S.r.l.
- Universal 350 and 550 Vdc bus supply
- 2.5-9 Nm torque, 5000 rpm max
- Multi axes machines
- Direct drive without gearbox
- Intrinsic multiple electric gear
- Built in single turn and multi turn 4096 turn + 16 bit absolute encoder, 1 arcmin accuracy
- No zeroing cycles
- CanOpen DS301, DSP402v2.0 compatible
- Double insulation
- Built in RFI filter, Class B
- IP 68 protection
Cybernetics made simple
The new TorqueWire series of integral servo systems creates a different approach to complex automatic machinery architecture. Torquewire motors are complete, self sufficient servo axis building blocks which allow the design, integration and operation of large multi axis systems with minimum hardware and surprising ease.
The TorqueWire motor systems consist of an advanced, high performance rare earth brushless servo motor, a DSP based, high voltage interpolating servo drive and a single or multi turn absolute encoder, all assembled in a very compact IP 68 protected frame.
The motor systems are controlled via a multi drop CanOpen field bus, linking together groups of motors on a single bus system. The motors are supplied from a common DC bus and braking energy from any drive is intrinsically recycled on any other axis on the network.
The performance of TorqueWire originates in the advanced design of both motor and drives.
The motor parts take advantage of a novel, patent pending winding design, along with new magnetic materials and a special winding technique, all of which result in a servo motor with about 60% of the size of a conventional servo design.
