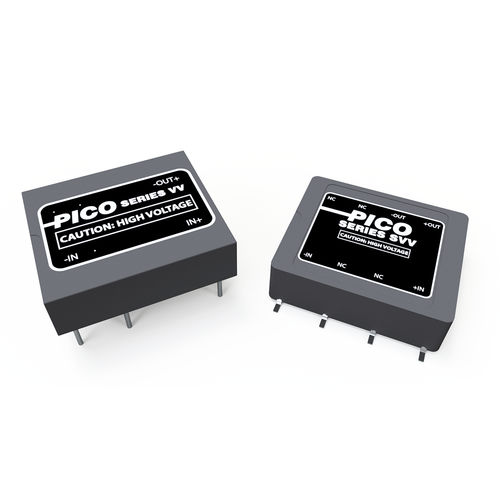

The VV/SVV Series of Single Output, Isolated, Proportional DC-DC Converters are manufactured in a miniature encapsolated package. The Series features Surface Mount and Plug-In versions of all units. The operating termperature range of -25ºC to + 70ºC required no current derating and/or heat sink.
FEATURES
Vout Proportional to Vin over wide voltage range
Maximum Load Current capability maintained over entire input range
High Efficiency: to 90%
Low Ripple: 0.2% to 0.5% Vout
Operating Temperature: -25ºC to +70ºC, no heat sink required
Low Profile: 0.400" Height
Epoxy encapsulation
OPTIONS AVAILABLE
Per Mil. Std. 883
Expanded Operating Temperature: -40ºC to +85ºC
Stabilization Bake (at +125ºC ambient)
Temperature Cycle (between -55ºC and +125ºC)
Hi Temp, Burn-in Cycle
Vibration, Shock, Humidity, and Altitude
Consult factory for your particular requirments
TYPICAL CHARACTERISTICS:
Test Conditions: +25ºC
Operating Temperature Range: -25ºC to +70ºC, with no heat sink or electrical derating required
Storage Temperature Range: -55ºC to +125ºC
Converter Frequency: 8-25 kHz
Output Temperature Coefficient (typ.): 0.02%/ºC
