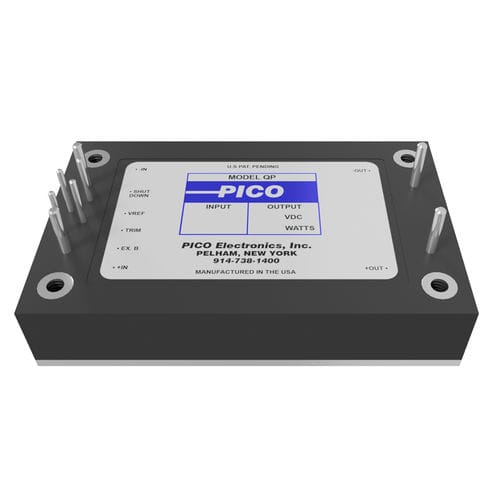

Encapsulated DC/DC converter module 6QP series
regulatedfor telecommunications equipmentindustrial

encapsulated DC/DC converter module
encapsulated DC/DC converter module
Add to favorites
Compare this product


Characteristics

Configuration
encapsulated
Electrical characteristics
regulated
Applications
industrial, for telecommunications equipment, military, commercial
Other characteristics
insulated, single-output, wide input range, miniature, high-power
Input voltage

Min.: 4.5 V

Max.: 9 V

Output voltage

Min.: 5 V

Max.: 500 V

Power

20 W, 25 W

Description

The QP Series of Miniature Power DC/DC Converters operates over wide input voltage ranges (4.5-9Vdc, 9-18Vdc, 18 - 36 Vdc, and 36 - 72 Vdc) while maintaining tight output regulation and low ripple. Safety Features of QP Modules include: Overtemperature, Input Under/Over voltage, Output Overcurrent and Short Circuit Protection. Units in QP Series also feature Remote Shutdown, Trim capability, 3Vref, External Bias and do not use OptoCouplers in the feed-back loop. Fixed Frequency operation enables parallel connection for higher power requirements. QP Series units are fully encapsulated for rugged operation. APPLICATIONS: Commercial, industrial and Military applications, process control, distributed power, test equipment, telecommunications. FEATURES: Line and Load Regulation: from 0.5% Vout Efficiency: Up to 90% Low Ripple Input Under/Over Voltage Protection Output Overcurrent and Short Circuit Protection Output Voltage Clamp: typ. 120% Vout Thermal Shutdown Trim Capability: - 5% Vout 3Vref output pin Remote Shutdown External Bias pin for capacitor charging applications 0°C to +85°C standard operating base plate temperature. Expanded operating temperature also available 2500 Vrms In/Out Isolation Fully Encapsulated
