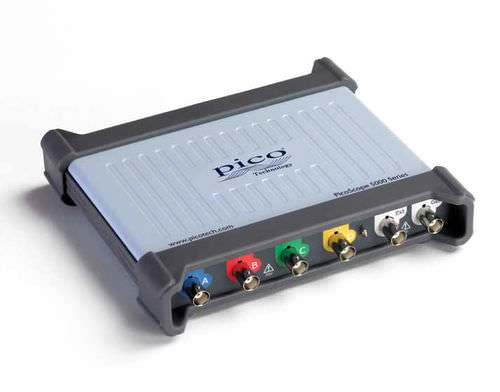

USB oscilloscope PicoScope 5000 series
analog-digitalportable2-channel

USB oscilloscope
USB oscilloscope
USB oscilloscope
USB oscilloscope
USB oscilloscope
USB oscilloscope
USB oscilloscope
Add to favorites
Compare this product


Characteristics

Input signal
analog-digital
Portability
portable
Number of channels
2-channel, multi-channel
Options and accessories
USB, high-resolution, with arbitrary waveform generator
Bandwidth

60 MHz, 100 MHz, 200 MHz

Description

Flexible Resolution USB Oscilloscope • FlexRes 8 to 16-bit hardware resolution • Up to 200 MHz analog bandwidth • 1 GS/s sampling at 8-bit resolution • 62.5 MS/s sampling at 16-bit resolution • Up to 512 MS capture memory • 16 digital channels on MSO models • 130 000 waveforms per second • Built-in arbitrary waveform generator • 18 serial decoding protocols as standard • Up to 200 MHz spectrum analyzer Today’s electronic designs employ a wide range of signal types: analog, digital, serial (both high- and low-speed), parallel, audio, video, power distribution and so on. All need to be debugged, measured and validated to ensure that the device under test is functioning correctly and within specification. To handle this variety of signal types, PicoScope 5000D FlexRes hardware employs multiple high-resolution ADCs at the input channels in different time-interleaved and parallel combinations to optimize either the sampling rate to 1 GS/s at 8 bits, the resolution to 16 bits at 62.5 MS/s, or other combinations in between – you select the most appropriate hardware resolution for the requirements of each measurement. 2 and 4 channel models are available, all featuring a SuperSpeed USB 3.0 connection, providing lightning-fast saving of waveforms while retaining compatibility with older USB standards. The PicoSDK® software development kit supports continuous streaming to the host computer at rates up to 125 MS/s. The product is small and light, and operates silently thanks to its low-power fanless design.
