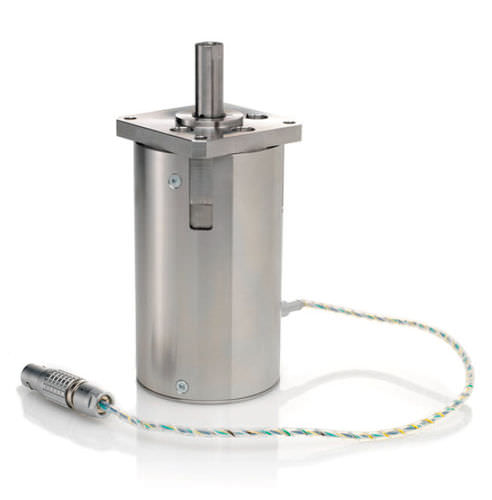

Linear piezoelectric motor LTC300

non-magneticstandard

LEGS Linear Twin LTC300 Linear motor: LTC300 delivers nanometer resolution with load capacity of 300 N with a 20 mm stroke. Its friction drive ensures full-force, power-off locking while avoiding mechanical play or backlash. Power consumption is zero when holding position by friction clamping. Full force power-off locking is a safety function inherent to the design. Designed for vacuum environments. Specifications Connector motorCable w. JST 05SR-3S Connector encoderN/A Material in motor housingStainless steel Vacuum10-7 Torr Stroke0-20 mm Speed range 10-0.3 mm/s Step Length 24 µm Motor resolution 3300 N Recommended operating range0–150 N Operating voltage42-48 V Power consumption200 mW/Hz Mechanical size L x H x D80 x 50 x 50 mm Weight955 g Operating temperature–20 to +70 ºC 1 @ Rhomb, no load, 20ºC 2 @ Delta, no load, 20ºC 3 14 bits, 8192 microsteps
