Manual fire nozzle

foam

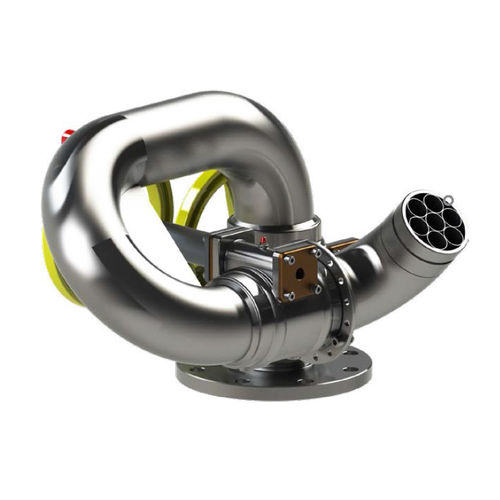

Our manual monitor DN100 in stainless steel offers an unequalled easiness of use thanks to its two geared handwheels. Vertical movement from -90° to +90° and horizontal movement from -170° to 170° according to the stops (adjustment by steps of 22.5°). It is equipped on the inlet with a flange 4" ASA150 and on the outlet with a 3.5" NST-NH thread on which a diffuser or a foam branchpipe can be mounted. The pipe of this monitor inlcudes an inside stream shaper made of seven elements which enables to get a higher range and a better stream quality. It can be equipped with different outlet equipment or coupling. Maximum working pressure: PN16 Material: stainless steel and bronze Horizontal movement: from -170° to +170° Horizontal adjustment: by handwheel Vertical movement: from -90° to +90° Vertical adjustment: by handwheel
