Water pump JEV serieselectricsemi-submersiblediaphragm
Add to favorites
Compare this product
Characteristics
- Fluid
- water
- Operation
- electric
- Priming
- semi-submersible
- Technology
- diaphragm
- Mobility
- stationary
- Domain
- industrial
- Applications
- transfer, discharge, process, drum
- Material
- EPDM
- Fluid specification
- for AdBlue
- Protection level
- ATEX
- Other characteristics
- suction, filter
- Flow
2 m³/h
(70.62933 ft³/h)- Head
Max.: 15 m
(49'02" )Min.: 0 m
(0'00" )- Power
0.26 kW, 0.31 kW, 0.4 kW
(0.35 hp, 0.42 hp, 0.54 hp)
Description

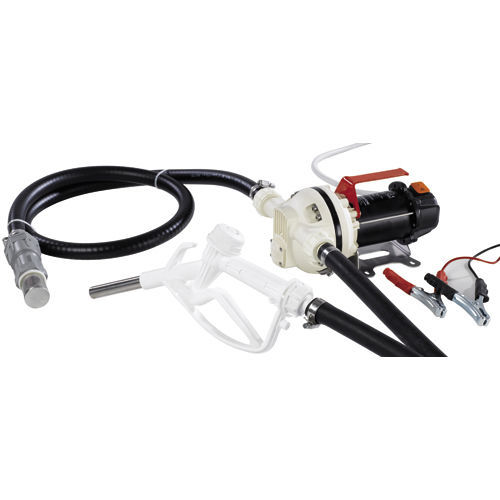

Electric pumps for AdBlue
Descriptive
Technical data
Designed for transferring AdBlue or water
Suction kit: 1.5 metres of hose with foot valve
Discharge kit: 6 metres of hose with manual delivery gun (automatic as an option)
Meter and filter: optional
Working cycle: 20 min
Rotation speed: 2800 rpm, 1450 rpm (JEV100EQ-ADBLUE)
Power: 0.26 (JEV112EQ-ADBLUE), 0.31 (JEV124EQ-ADBLUE), 0.4 (JEV100EQ-ADBLUE)
Voltage: 12 dc (JEV112EQ-ADBLUE), 24 dc (JEV124EQ-ADBLUE), 230 Volts single-phase (JEV100EQ-ADBLUE)
Max. TDH: 15 metres
Current: 22 (JEV112EQ-ADBLUE), 13 (JEV124EQ-ADBLUE), 2 (JEV100EQ-ADBLUE)
Base: to be mounted on the barrel
Electric pump and gun: manual
Nozzle and clamps: for tightening
Specifications and advantages:
Electric pump for AdBlue
Characteristics
More Information
Fluid - Adblue, Water with low solids contect
Technology - Membrane
ATEX - No
Pump - Equipped
Pump sets - kits or transferring units
Orifice - 3/4’’ + Ø 20
Suction - 1.5 metres of pipe with strainer foot valve
Catalogs
No catalogs are available for this product.
See all of Pompes Japy‘s catalogs
