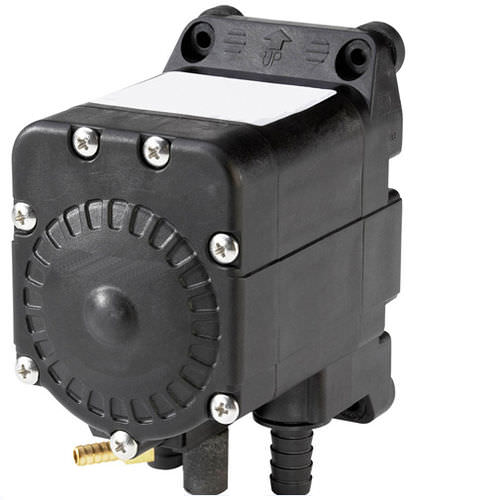

Chemical pump / pneumatic / double-diaphragm / self-priming
PP3/8V-ATEX Pompes Japy

Characteristics

  • Media:

    for chemicals

  • Operation:

    pneumatic

  • Type:

    double-diaphragm

  • Priming:

    self-priming

  • Other characteristics:

    trial, PP

  • Flow:

    Min.: 0 m³/h (0 ft³/h)

    Max.: 1.59 m³/h (56.15 ft³/h)

  • Pressure:

    Min.: 1.4 bar (20.31 psi)

    Max.: 6.9 bar (100.08 psi)

  • Head:

    6 m (19' 8"), 4.5 m (14' 10")

Description

Characteristics: Body: PP Membranes: Kalrez R Springs: Hastelloy R Weight: 0.54 kg Max. viscosity: 750 cps Pressure: 1.4 to 6.9 bar Self-priming from dry: 4.5 m Self-priming from wet: 6 m Max. flow rate: 1.59 m3 / hSpecifications and advantages: An industrial pump for general applications, hygienically designed with moulded membranes. Quick-fit unions for easy installation, can run dry without incurring damage.
