Slurry pump PE serieswaterelectricsubmersible
Add to favorites
Compare this product
Characteristics
- Fluid
- water, slurry
- Operation
- electric
- Priming
- submersible
- Technology
- turbine
- Mobility
- stationary
- Domain
- industrial
- Applications
- drainage, drainage, lifting
- Material
- stainless steel
- Fluid specification
- for solids-laden fluids
- Voltage
- 230 V
- Other characteristics
- mechanical, double, with mechanical seals, built-in, dry, portable, seal, thermal protection
- Flow
12 m³/h, 18.5 m³/h
(423.776 ft³/h, 653.32133 ft³/h)- Head
Max.: 18 m
(59'00" )Min.: 12 m
(39'04" )- Power
0.4 kW, 0.75 kW
(0.54 hp, 1.02 hp)- Fluid temperature
Max.: 40 °C
(104 °F)Min.: 0 °C
(32 °F)
Description

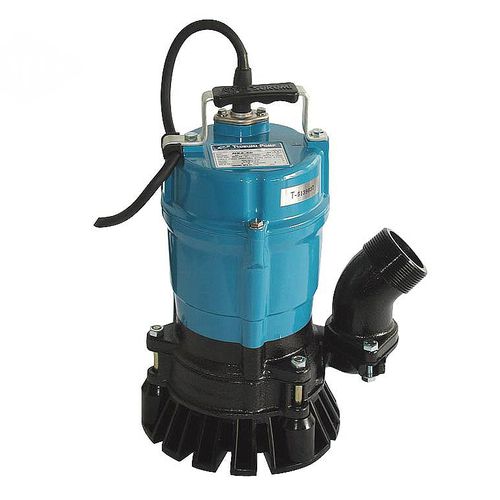

Single-phase portable drainage pump
Descriptive
Specifications and advantages:
For the pumping of muddy and sandy water. Excavation drying.
Designed for prolonged dry running.
Temperature of the pumped liquid: 0 to 40°C.
230 V, 50 Hz single-phase motor with built-in heat protection and 10 m cable.
Maximum permitted particle size: Ø 6 mm.
Aluminium motor casing, stainless steel shaft, urethane turbine, waterproofing by a double mechanical seal with oil chamber.
Optional float.
