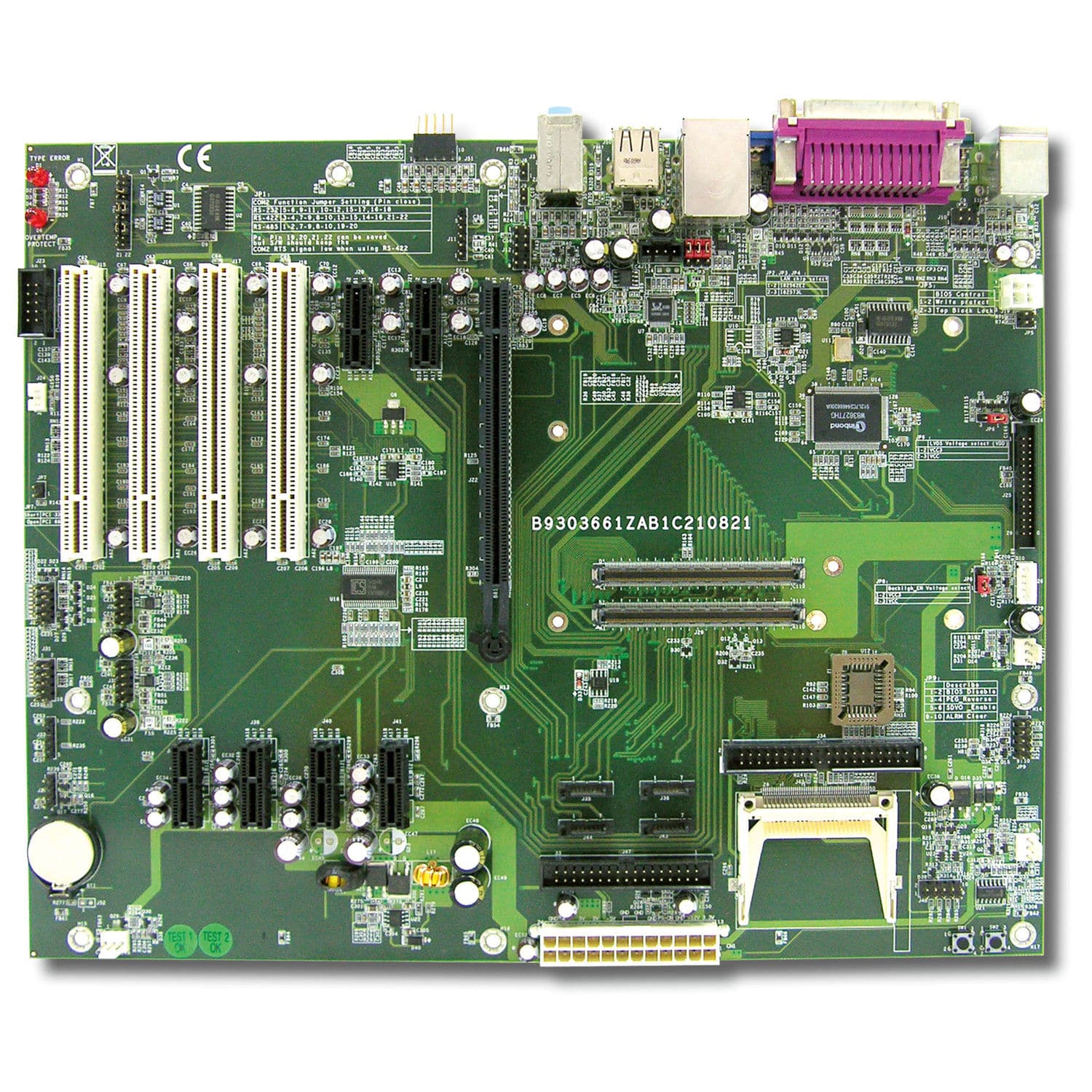

ATX carrier board
PCOM-C210
PORTWELL
Portwell PCOM-C210 is designed with COM Express Type II interface, suitable for initial evaluation testing in PCI-E, PCI, PEG/SDVO, IDE, SATA, LAN, LVDS, AUDIO, etc. interfaces before developing your own application focused customized carrier board.
FEATURES
COM Express carrier board accepts Portwell Type II COM Express modules
ATX form factor to meet most standard mounting space and provide more expansions slots
On-board power and reset switches benefits engineering testing or evaluate without a chassis
2 EIDE, 4 SATA, 4 PCI, 6 PCI-E x1 and 1 PCI-E x16
Allow user to select master BIOS on board or from CPU module
