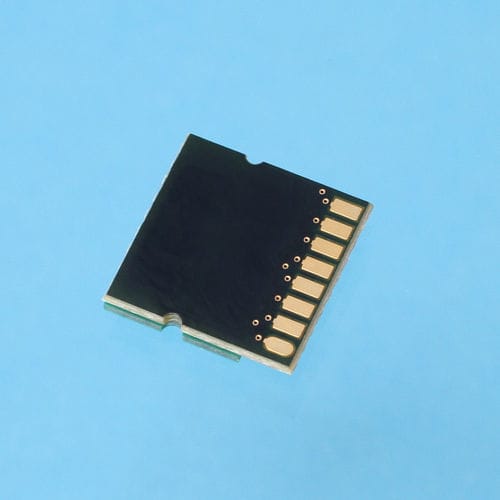

incremental rotary encoder / inductive / digital / hollow-shaft
IT3402C POSIC

{{requestButtons}}

Characteristics

  • Type:

    incremental

  • Technology:

    inductive

  • Output signal:

    digital

  • Construction:

    hollow-shaft

  • Other characteristics:

    miniature

  • Housing diameter:

    Max.: 73 mm

    Min.: 12 mm

Description

Features :

- Differential inductive sensing principle

- Robust against dust, particles, oil, grease, liquids

- Insensitive to magnetic fields

- Ferromagnetic particles not attracted by codewheel



Specifications:

- Resolution: 256 up to 4096 CPR

- Speed: 0 up to 10’000 RPM at low resolution, 2500 RPM at high resolution

- Encoder dimensions : 11 x 11 x 0.9 mm

- Codewheel dimensions: inner diameter 12 - 56 mm, outer diameter 28 – 73 mm
