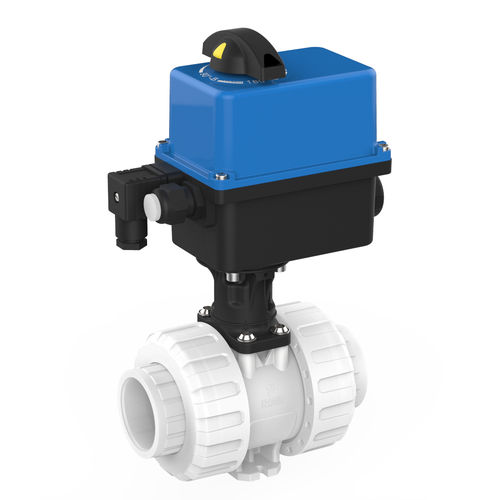

Ball valve M1
electrically-actuatedfor potable waterPTFE

ball valve
ball valve
Add to favorites
Compare this product


Characteristics

Type
ball
Operation
electrically-actuated
Media
for potable water
Body
flange, threaded, PTFE, PVDF
Number of channels
2-way
Other characteristics
with positioner
DN

Max.: 80 mm
(3.15 in)

Min.: 10 mm
(0.394 in)

Pressure

16 bar
(232.1 psi)

Temperature

Max.: 100 °C
(212 °F)

Min.: -20 °C
(-4 °F)

Flow rate

Max.: 8,850 l/min
(2,337.92 us gal/min)

Min.: 4.1 l/min
(1.08 us gal/min)

Description

Silicon-free Buttress thread for perfect fit of the union nut Integrated bracket for fix point mounting 4 adjustable limit switches Position indication Torque and force limiters Travel time 6–50 sec Duty cycle 30% Versions: Fail-safe 4–20 mA Positioner Seal materials - FPM Ball seating joint - PTFE Connections - flange, solvent socket, solvent spigot, threaded socket
