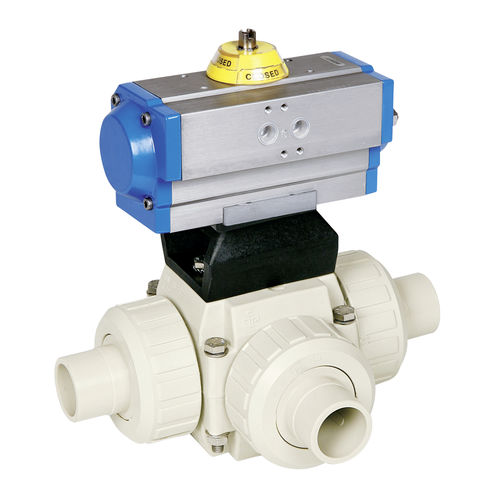

Ball valve S4
pneumatically-operatedfor liquid food products and beveragesflange

ball valve
ball valve
ball valve
Add to favorites
Compare this product

Go to the Praher Plastics Austria GmbH website for more information

Characteristics

Type
ball
Operation
pneumatically-operated
Media
for liquid food products and beverages
Body
flange, threaded, T, PTFE, EPDM, anodized aluminum, PP
Applications
hygienic
Number of channels
3-way
DN

Min.: 10 mm
(0.394 in)

Max.: 50 mm
(1.969 in)

Pressure

10 bar
(145 psi)

Temperature

Min.: -20 °C
(-4 °F)

Max.: 80 °C
(176 °F)

Flow rate

Min.: 2 l/min
(0.53 us gal/min)

Max.: 920 l/min
(243.04 us gal/min)

Description

L or T ball Aluminium anodised body with aluminium epoxy powder coated end caps Any installation position Rotation angle 90°, +/- 10° Integrated optical position indication Accessories: Limit switch box Solenoid valve Seal materials - EPDM, FPM Ball seating joint - PTFE Connections - flange, fusion socket, fusion spigot, threaded socket Approvals - EURASEC Hygienic Certificate, GOST Certificate, Rostehnadzor Permission, TÜV Certificate
