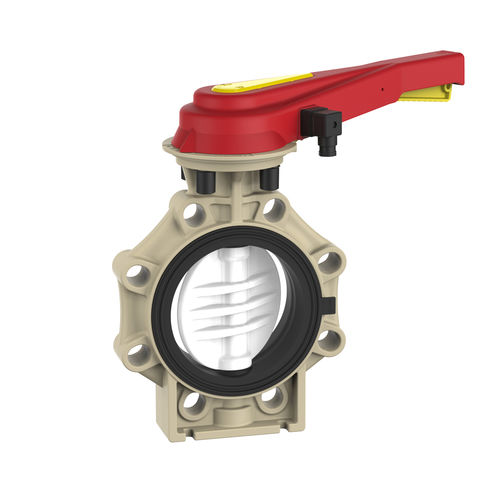

Butterfly valve K4 levercontrolflange
Add to favorites
Compare this product
Characteristics
- Type
- butterfly
- Operation
- lever
- Function
- control
- Body
- flange, PVDF, IP65, IP67
- Applications
- hygienic
- Other characteristics
- locking, with positioner
- DN
Max.: 200 mm
(7.874 in)Min.: 65 mm
(2.559 in)- Pressure
10 bar
(145 psi)- Temperature
Max.: 65 °C
(149 °F)Min.: -10 °C
(14 °F)- Flow rate
Max.: 38,000 l/min
(10,038.54 us gal/min)Min.: 73 l/min
(19.28 us gal/min)
Description
Position feedback integrated in hand lever!
Mechanical limit switch IP67 in AG-NI NO
Mechanical in AG-NI NC, AU NO, AU NC on request
Inductive NPN/PNP on request
Namur on request
Adjustable
Incl. stainless steel bolts
Incl. device plug
All other advantages of the K4:
only sleeve gasket and disc in touch with medium, double sealed shaft, integrated bracket for fix point mounting, simple and quick assembling of the actuator without any extra parts, 10 different disc locking position, reliable „locking-handle-system“, hand lever with marking plate, metal adapter between handle and shaft avoids abrasion of the handle.
Approvals - Declaration of Conformity acc. to Annex VII of the Directive 97/23/EG, EURASEC Hygienic Certificate, GOST Certificate, Rostehnadzor Permission, TÜV Certificate
