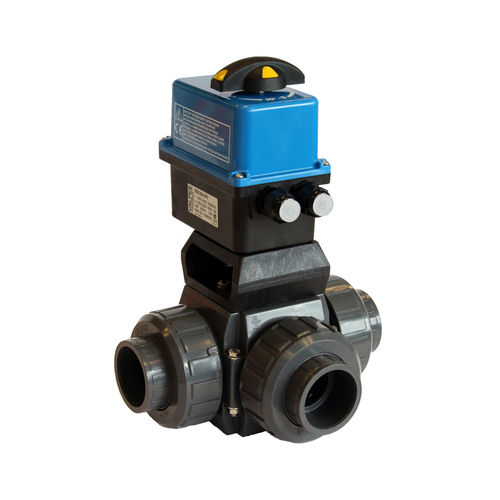

Ball valve S4
electrically-actuatedflangethreaded

ball valve
ball valve
ball valve
Add to favorites
Compare this product


Characteristics

Type
ball
Operation
electrically-actuated
Body
flange, threaded, T, PTFE, EPDM, PVC-U, IP66
Applications
hygienic
Number of channels
3-way
DN

Min.: 10 mm
(0.394 in)

Max.: 50 mm
(1.969 in)

Pressure

16 bar
(232.1 psi)

Temperature

Min.: -10 °C
(14 °F)

Max.: 55 °C
(131 °F)

Flow rate

Min.: 2 l/min
(0.53 us gal/min)

Max.: 1,940 l/min
(512.49 us gal/min)

Description

L- or T-ball 15-30 V AC (12-48 V DC) or 100-240 V AC (100-350 V DC) Optical position indication Manual hand override 7 adjustable limit switches Electronic torque limitation Travel time 12 sec Duty cycle 50% Anti-condensation-system Seal materials - EPDM, FPM Ball seating joint - PTFE Connections - flange, PE fusion socket, PE fusion spigot, solvent socket, solvent spigot, threaded socket Approvals - Declaration of Conformity acc. to Annex VII of the Directive 97/23/EG, EURASEC Hygienic Certificate, GOST Certificate, ÖVE Certificate, Rostehnadzor Permission
