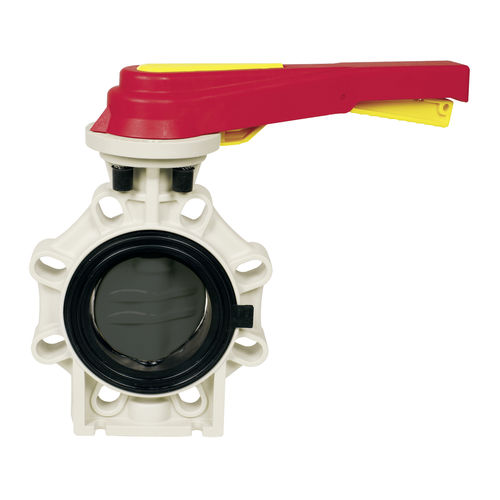

Butterfly valve K4leverflangePVC-U
Add to favorites
Compare this product
Characteristics
- Type
- butterfly
- Operation
- lever
- Body
- flange, PVC-U
- Other characteristics
- ISO, ANSI, DIN, locking
- DN
Min.: 65 mm
(2.559 in)Max.: 200 mm
(7.874 in)- Pressure
10 bar
(145 psi)- Temperature
Min.: -20 °C
(-4 °F)Max.: 120 °C
(248 °F)- Flow rate
Min.: 73 l/min
(19.28 us gal/min)Max.: 38,000 l/min
(10,038.54 us gal/min)
Description
Safety handle with PLS – Praher Labelling System
Ten different locking positions
Double sealed shaft
Encapsulated wetted parts
Integrated brackets for fix point mounting
Simple upgrade to automatic actuation – ISO 5211 flange type (F07, F10)
Mounting between DIN, ANSI, JIS flanges
Approvals - Declaration of Conformity acc. to Annex VII of the Directive 97/23/EG, EURASEC Hygienic Certificate, GOST Certificate, Rostehnadzor Permission
