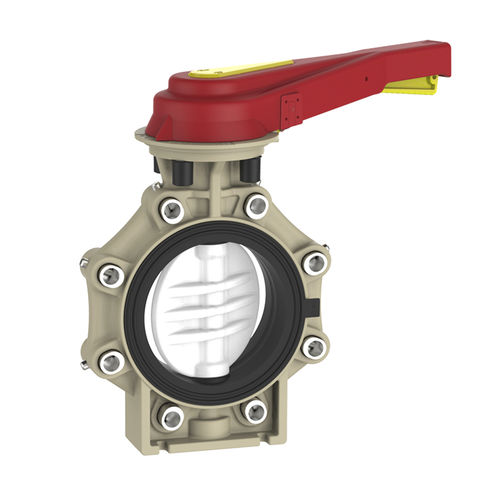

Butterfly valve K4
leverPVDFflange

butterfly valve
butterfly valve
butterfly valve
butterfly valve
Add to favorites
Compare this product


Characteristics

Type
butterfly
Operation
lever
Body
flange, lug type, PVDF
Other characteristics
ANSI, DIN, locking
DN

Min.: 65 mm
(2.559 in)

Max.: 200 mm
(7.874 in)

Pressure

10 bar
(145 psi)

Temperature

Min.: -20 °C
(-4 °F)

Max.: 120 °C
(248 °F)

Flow rate

Min.: 73 l/min
(19.28 us gal/min)

Max.: 38,000 l/min
(10,038.54 us gal/min)

Description

Lug Type Version in DIN and ANSI – the inserts allow the installation as intermediate flange or as final installation valve or individual one-sided removal of the piping system! Only sleeve gasket and flap in touch with medium Double sealed shaft Integrated brackets for fix point mounting Simple and quick assembling of the actuator without any extra parts 10 different disc locking positions Reliable “Locking-handle-systems” Hand Lever with marking plate (different colours available) Metal adapter between handle and shaft avoids abrasion of the handle
