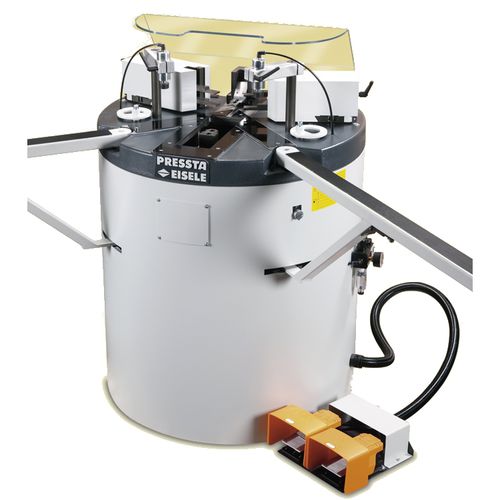

• A new crimper for big sized aluminium profiles
• 2 universal and adjustable punching units allow a work range
• of the crimping point from 25 to 60 mm from the vertex of the profile
• Pneumatic crimping via lever system ensures synchronous movement of the punching units
• Hydropneumatic descending counter support for easier handling of the frames
• Max profile dimensions: height 190 mm,
• Max. crimping height 150 mm
• Min. frame dimension inside 175 mm
• 2 excenter disc for good positioning of profiles
• 2 pneumatic down clamps
• Adjustable height of the V-stop, crimping knives and V-blocks
• 3 pairs of standard crimping knives 3/5/7 mm
• 2 V-blocks 15 / 30 mm
• 3 pairs of standard crimping knives 3/5/7 mm
• Power 56 KN at 8 bar each head
• 2 pneumatic down clamps
• hydraulic counter support
• V-blocks adjustable up to 120 mm
• Max profile dimensions: height 160 mm,
• max. crimping height 130 mm/ 145 mm
• Min. frame dimension inside 110mm with standard counter support /
• 175 mm with automatic counter support
• 2 side stops for good positioning of the frames
• Split horizontal punching heads to compensate profile off-set up to 40 mm (Option)
• Automatic counter support to compensate profile off-set or tolerances (Option)
Technical Data:
• Pressure: 6 to 8 bar
• Power: 56 KN
• Groove measure: 25 – 60 mm
• Weight: approx. 260 Kg
• Dimension: 950x 680 x 1260 mm (LxWxH)
• Support arms: 1000 mm
• Working height: 955 mm
• Colour: RAL 7016/7035
