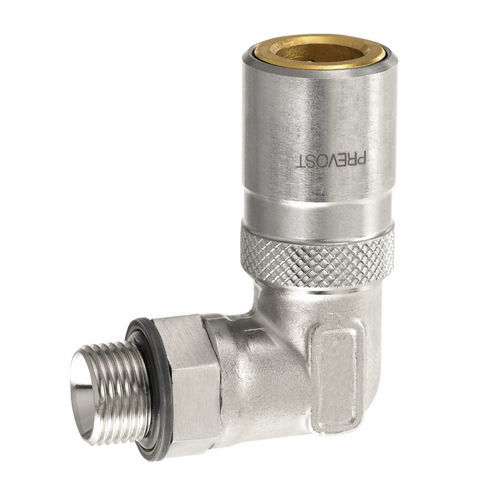

screw-in fitting / 90° angle / hydraulic / chrome
PREOL 06115xRE series PREVOST

{{requestButtons}}

Characteristics

  • Attachment:

    screw-in

  • Configuration:

    90° angle

  • Applications:

    hydraulic

  • Material:

    chrome, stainless steel, brass

  • Other characteristics:

    with O-ring

  • Diameter:

    Max.: 12 mm

    Min.: 6 mm

  • Operating pressure:

    16 bar (232.06 psi)

Description

Fluid : water, oil, coolant All pH-neutral utilities
ID Passage : Ø 6, 9, 12 and 16 mm
Temperature : Water: max. 100°C Oil: max. 150° C
Pressure : P.N. 16 bar
Construction : Coupling: brass body - Bush: Stainless stell, chromium - O-ring: viton
