solvent distillation unit
PRO-25000-7.5 Pro-Tek

Add to MyDirectIndustry favorites

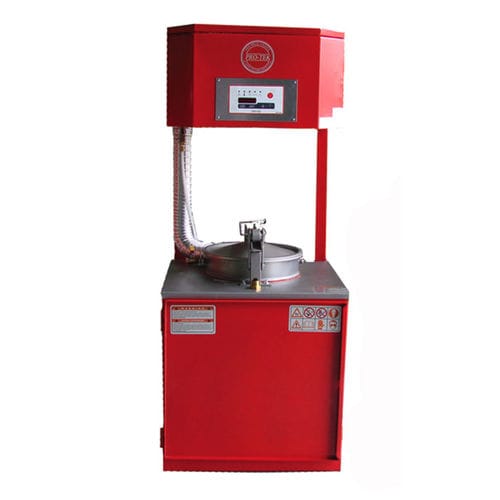

solvent distillation unit solvent distillation unit - PRO-25000-7.5


  • Applications:



The capacity of this particular boiler is of 7.5 gallons, or 28 liters in the metric system. The construction of the boiler is of stainless steel, with the operating temperature being evaluated between 40 and 200 degrees Celsius (or 104 to 392 degrees Fahrenheit). The heating is done using oil, while the cooling is on the base of an air fan motor. The recovery rate for the solvent is of 95%, while the electrical data is of Class 1, Div 1, group D.

The voltage of 220 V at a frequency of 50/60 Hz and the amperage of 9.5 ANP are other major additions to this product, while the operating time per cycle is of 3-4 hours. In terms of the dimensions the item measures 32" x 32" x 70", including the box, and weighs 290 lbs (117 kg).
