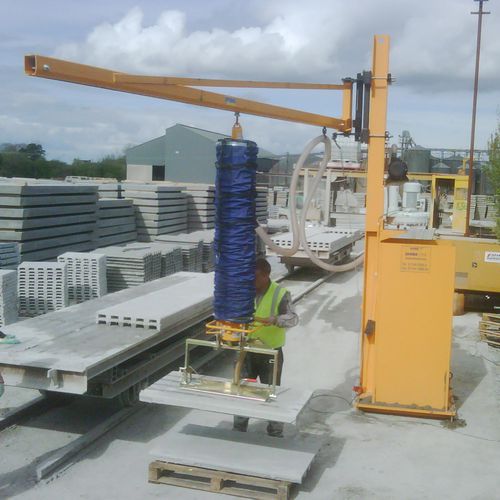

Pillar jib crane JWK series

mobileliftingelectric

Complete ready-to-use unit comprising crane, ballast, electrics and vacuum turbine. Complete with socket. Ballast container, made of steel sheet, approx. 1.0 x 0.8 x 1.8 m height (40” x 311/2” x 71”) should be filled with concrete, sand or steel scrap. Thus ensuring the necessary stability. Adjusting screws for alignment. Light weight boom, 4,000/5,000 mm reach, height adjustable and with a displacement of about 270°. Supply-hose D = 60 mm, 7,000 mm long. With quick coupling 2 inch. To complete your Jumbo Travelling Crane JWK you need: Lifting Unit, Operating Valve Unit, Suction Plate. Further information • - The machine can be moved easily by taking up with the fork prongs from a forklift truck for example. • - Various lifting units and grippers can be attached to the Jumbo Travelling Crane JWK (see specifications). • - The lifting and lowering speed can be controlled extremly smoothly. • - Can be operated easily, exactly and quickly. • - Materials of all types can be easily lifted, sorted and layed. • - The vacuum is used for holding the materials as well as for lifting them. • - Efficient working practices and less stress on your workers. JWK-80/250-4-EU: Vacuum turbine VGE-SB-EL with electric motor (electrical date see page 177), incl. pressure regulating valve DBV, motor protector switch and socket “CEKON” 32 A with integral phase switch, dust-filter with pre-separator and filter cartridge.
