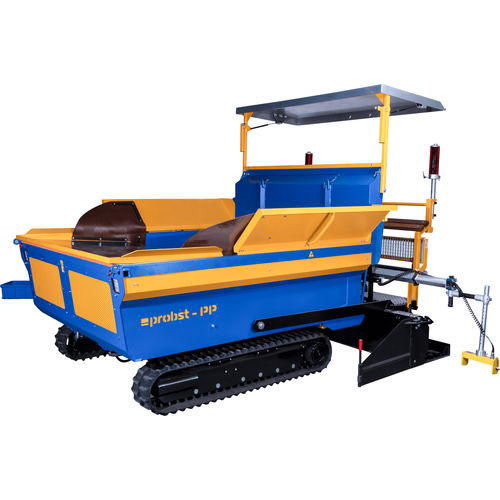

Screeding machine POWERPLAN PP

Standard Asphalt Paving Machines, (Finisher) are working with scratch conveyors and worm shafts to distribute the material. When screeding sand or chippings for the bedding of concrete pavers, this abrasive material is wearing away these components very fast, which is causing high maintenance costs. The Screeding Machine POWERPLAN PP was specially designed to screed such bedding material without major wear on the machine. Whether subbase, base or gravel (up to grain size 0/63), split, whether sand or even bedding material, the POWERPLAN PP from Probst takes on installation of the relevant material in one go (up to installation height 20 cm) – at absolutely accurate height. Depending on height profile and kind of control system used, it is possible to screed per day between 2.500 sqm (27,000 sqft) using sonic control or up to 10.000 sqm ( 107,500 sqft) using laser control feature. 4-cylinder diesel motor, 18.5 kW / 25.2 hp. Complies with EU emission regulations level V and TIER IV final (USA), no restriction in environmental zones, as engine power < 19 kW. Hydraulic liftable front chute. Sideways foldable chutes to avoid that material is spilling over the side of the hopper. Two independently hydraulically operated lids at the bottom of the hopper to perfectly control the material flow. Basic width of the screed board 2,050 mm (81“). By using one board extension on either side extendable to 2,400 mm (94“) or even 2,750 mm (108“). On either side one smoothing board can be fixed to extend the full working width to 3,450 mm (136“). Smooth-running adjustable cantilevers for holding the sonic sensors (sonic ski), complete scanning width up to 6,500 mm (256“).
