Monitoring control system CVE series

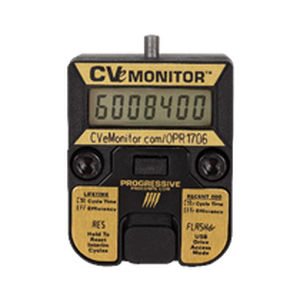

Expanding the line of CounterView products, the new CVe Monitor tracks mold activity allowing users to view the data on the display or from comprehensive reports. Progressive^ CVe Monitor tracks tool activity. allowing users to view data on the display or from comprehensive reports using OnDemand or the new CVe Live System. Features include: • - 7-digit LCD display with a push button to move through the display modes. • - 16GB flash drive for file storage. • - Replaceable battery. • - Water résistant with an ingress protection rating of IP58. • - Maximum température: 190° F (90° C). For heat protection, refer to the Insulators available on pages F-10 and F-ll. • - Recommended mounting is on the stationary half of the mold. • - Dimensional compatibility with Progressive's mechanical CounterViews. • - Mini USB connectivity for data retrieval with cables sold separately. How to Order: • - For installation below parting line (ie. rails as shown in the center graphie above). order (1) CVE and (1) CVE-INT. • - For installation outside of the mold (right graphie), order (1) CVE and (1) CVE-EXT. CVE and (1) CVE-EXT. ON-MOLD DISPLAY MODES Each device is provided at -25 cycles to allow for mold set up and initialization of the CVe Monitor. Once it reaches zéro (0). ail timers and data will reset on the monitor. During production, users can press the button on the front of the monitor and review the following information on the display:
