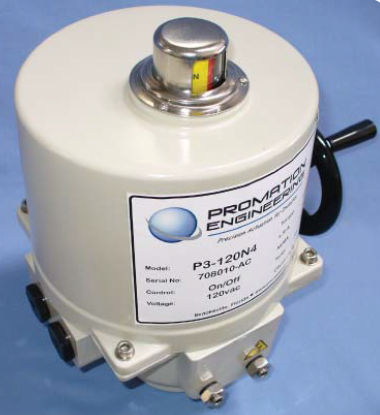

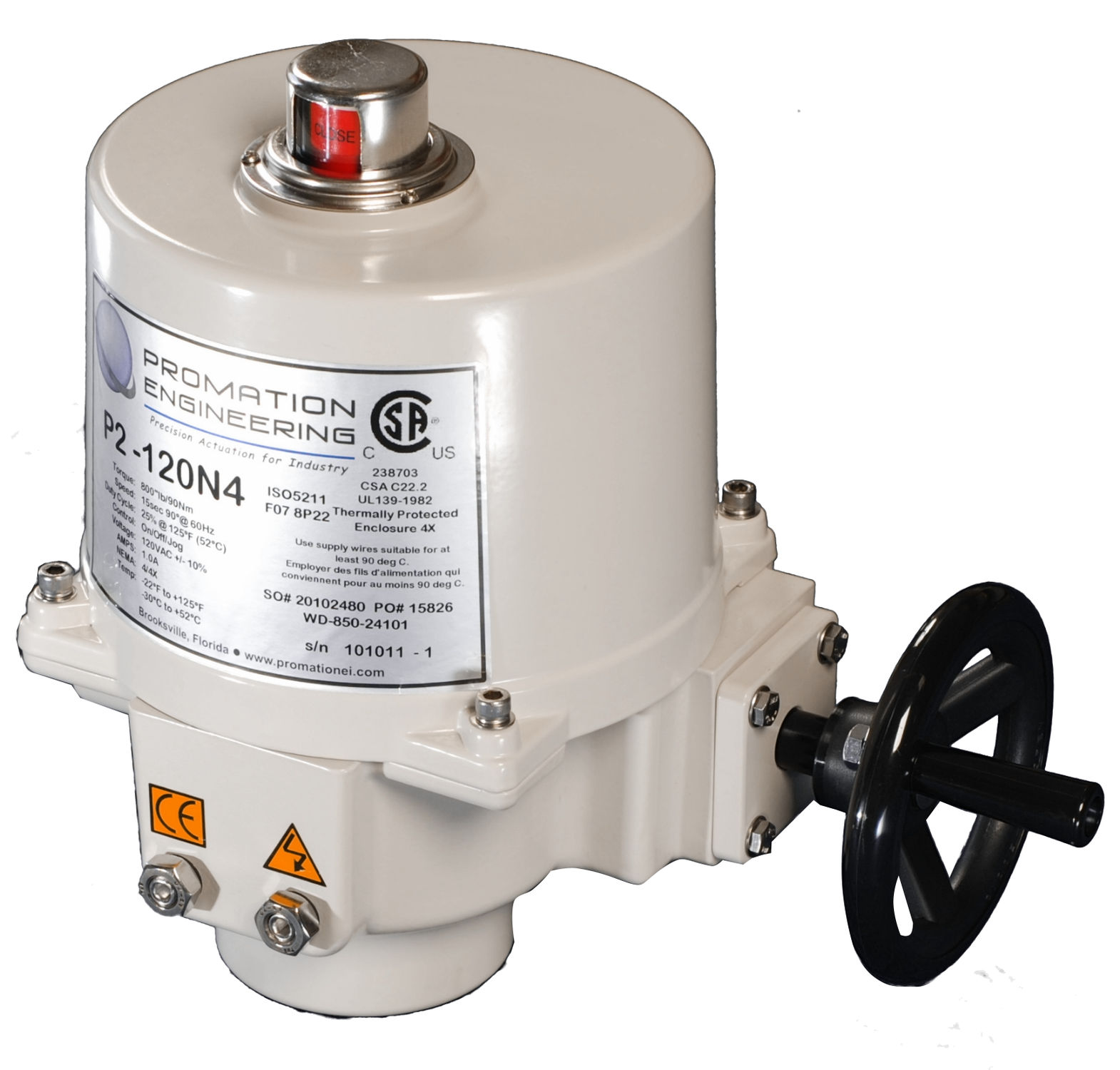

Electric valve actuator
800 - 1300 "lbs (90 - 147 Nm), NEMA 4X | P2/P3 series ProMation Engineering Inc.

An electric actuator designed for load requirements ranging from 800 to 1335”lbs. The actuator comes standard with two auxiliary switches (Form C), an internal low power heater, a NEMA 4X environmental rating, and in 12vac, 24vac, 120vac or 230vac supply voltages. The P2/3 mechanical connections are ISO5211 compliant. The P2/3 Series can be ordered as an on/off or two position model that can also be used in bump/jog applications. 24V, 120V & 230V models can also be ordered with an advanced internal proportional control card that accepts a wide range of control signals, generates multiple feedback signals, and has look-ahead fault prevention. 12V models also offer proportional control option but with slightly less functionality than the higher voltage models.
