Storage tank CSEC series
fermentationindustrialfor effluents

storage tank
storage tank
storage tank
storage tank
storage tank
storage tank
Add to favorites
Compare this product


Characteristics

Function
storage, fermentation, industrial
Product applications
for effluents, for sewage sludge, slurry
Material
PVC
Type
flexible, double-walled
Applications
industrial, for agricultural applications, for wastewater treatment
Other characteristics
horizontal
Capacity

Min.: 50 m³
(1,765.733 ft³)

Max.: 500 m³
(17,657.333 ft³)

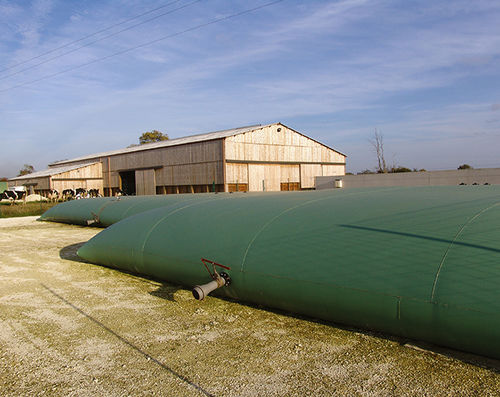

Description

Designed using a high-strength coated engineering fabric which is compatible with most acidic or basic solutions, our flexible effluent tanks are the ideal solution to store your agricultural or industrial effluents. This range of flexible tanks can be used to store: •Lixiviates •Liquid manure •Slurry •White and brown water •Agricultural effluents •Wine making effluents •Grey water •Chemical effluents APPLICATIONS Storage of industrial effluents Storage of agricultural effluents Previous Next ADVANTAGES Use •Economic •Environmentally friendly •Completely closed (no odours) Safety •Constant volume, no evaporation •Protected from rain water •Unique weld seam reinforcement Handling •No need for a building permit •Quick and easy deployment DETAILED INFORMATION •Material: high resistance 1300gr/m2 cloth •Coating: double-sided PVC •Dimensions: standard and custom made under request > contact us •Assembly: high-frequency welding •Tensile strength (ch/tr): 300 daN/5cm •Tear resistance (ch/tr): 300 daN/5cm •Temperature resistance: -30°C to + 70°C •Adherence (ch/tr): 10 daN/5cm •Custom made •Accessories: o1 DN 140 welded vent to screw-in with gas release valve o1 DN 80 elbow overflow with symmetrical connector and cap o1 DN 50 PPG quarter-turn guillotine valve assembly + DN 50 symmetrical connector and cap o4 reinforced corners o1 repair kit othermal valve protector
