electric chamfering machine / pneumatic / hydraulic / hand-held
US150 PROTEM

{{requestButtons}}

Characteristics

  • Operation:

    electric, pneumatic, hydraulic

  • Type:

    hand-held

  • Applications:

    weld preparation, for tubes, precision, for weld seam preparation

  • Other characteristics:

    squaring, semi-automatic

  • Rotational speed:

    10 rpm (62.83 rad.min-1)

  • Chamfer width :

    Min.: 5.9 in

    Max.: 36.2 in

  • Chamfer angle:

    Min.: 30 °

    Max.: 45 °

Description

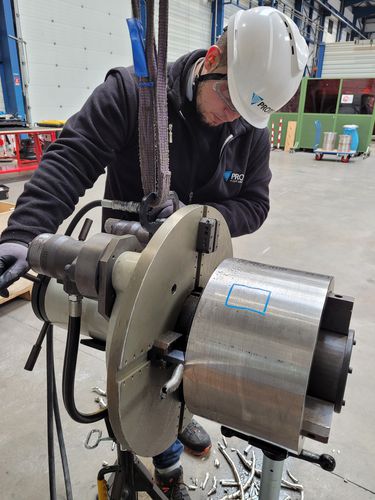

The US 150 covers diameters ranging from 150 mm (5.905”) ID to 508 mm (20”) OD. This machine can also be delivered with its 610 mm (24”) tool holder plate.

The US150 heavy duty beveler is a durable, portable machine that performs repeatable, high quality weld end preparation operations on metal pipes including mild steel, chrome, stainless steel, duplex, super duplex, coppernickel alloy steel, inconel, P91, aluminium, copper and exotic alloys.

It can be either pneumatically or electrically or hydraulically driven. The standard tool plate will accept multiple tool bits, allowing up to four simultaneous machining operations. Operations may include 30°, 37°30, 45° bevels with or without land, J-bevels, compound bevels, facing, counterboring operations.

The tool bits can be changed and adjusted very quickly. Carbide tool inserts
may also be used. Easy to use, durable and versatile, the US 150 will allow you to optimize your tube and pipe welding preparations.
