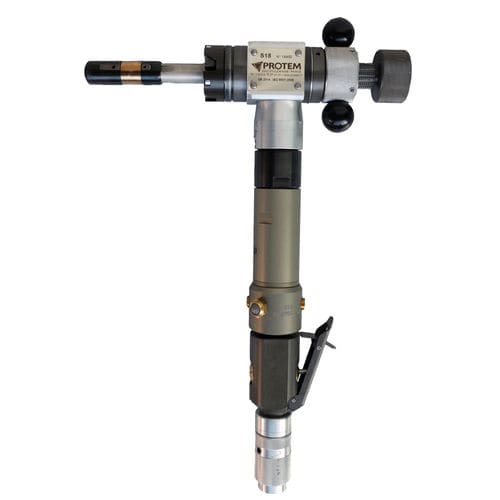

Tube beveling machine S18
pneumaticportablefor weld seam preparation

tube beveling machine
tube beveling machine
tube beveling machine
tube beveling machine
Add to favorites
Compare this product


Characteristics

Operation
pneumatic
Type
portable
Applications
weld preparation, tube, exchanger tube, boiler tube, for weld seam preparation
Other characteristics
high-speed, squaring, manual feed
Rotational speed

Min.: 0 rpm
(0 rad.min-1)

60 rpm
(376.99 rad.min-1)

Max.: 120 rpm
(753.98 rad.min-1)

Chamfer width

Min.: 0.3 in

Max.: 1.3 in

Chamfer angle

Min.: 30 °

Max.: 45 °

Description

The S18 is a powerful beveling and facing machine. The standard tool-holder plate will accept multiple tool bits, allowing several simultaneous machining operations. Such operations may include beveling, facing, counterboring, compound beveling, od chamfering, removal of weld joints on heat exchanger tubes, cut to lenght of heat exchanger tubes. The S18 features a self-accepting torque system and an integral drive motor. Advantages: • Portable • Powerful Machining Equipment • Easy and Safe use for the Operators • No Heat Affected Zone • High Accuracy • Fast and easy mounting • The tool bits can be changed and adjusted very quickly • Adapted for works in tight spaces • The machine can be used in all positions: vertical, horizontal, over head • Versatile Cutting Head: the tool-holder plate can accept up to 2 tool bits for simultaneous machining operations (land, bevel, counterboring, j prep) • Smooth and Burr-Free Surface Finish • No vibration during the machining process Cold machining - No heat affected area - Repetitive quality - Ergonomics - Reliability - Operator safety Standard Capacity: 18mm - 42mm (0.708“-1.653“) Extended Capacity: 14mm - 42mm (0.551“ - 1.653“) Use: construction, maintenance, repair of tubular components Motors: pneumatic, electric, battery and hydraulic Nuclear - Oil Gas - Renewable energies - Hydro-energy - Aerospace - Shipbuilding - Defense - High purity - Chemical industries
