electric chamfering machine / pneumatic / hydraulic / hand-held
US600R PROTEM

{{requestButtons}}

Characteristics

  • Operation:

    electric, pneumatic, hydraulic

  • Type:

    hand-held

  • Applications:

    weld preparation, for tubes, precision, for weld seam preparation

  • Other characteristics:

    squaring, automated

  • Rotational speed:

    50 rpm (314.16 rad.min-1)

  • Power:

    30,000 kW (40,788.63 hp)

  • Chamfer width :

    59.1 in

    Min.: 23.6 in

  • Chamfer angle:

    Max.: 45 °

    Min.: 30 °

Description

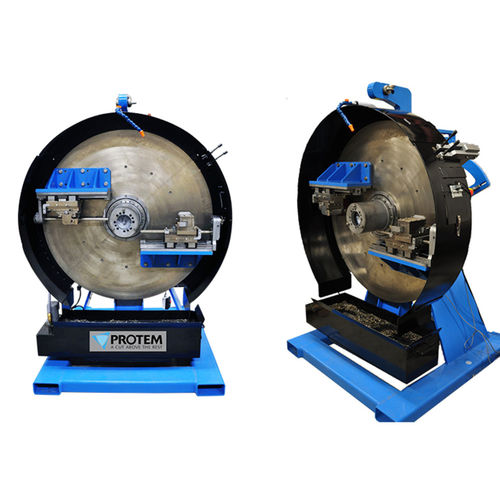

The Protem US600-R machine is a transportable beveler that allows
to make all types of beveling on diameters ranging from 600 mm
(23.622 ") to 1000 mm (39.370") (version 1) from 1000 mm (39.370 ") to 1500 mm
(59.055 ") (version 2).

It is designed to make bevels on rough tubes and pipes by using
standard carbide inserts. It can beveling thicknesses of
tubes up to 4 ". The machine is equipped with a hydraulic motor
and is connected to a group of 30kW.

Precision is the key word that defines the Protem US600-R machine, which it
the tightness or the perfect geometry of chamfers that can be
made.

Cold machining - No heat affected area - Repetitive quality - Ergonomics - Reliability - Operator safety.

Use: construction, maintenance

Nuclear - Oil Gas - Renewable Energy - Hydro-energy - Aerospace - Shipbuilding - Defense - High purity - Chemical industries.
