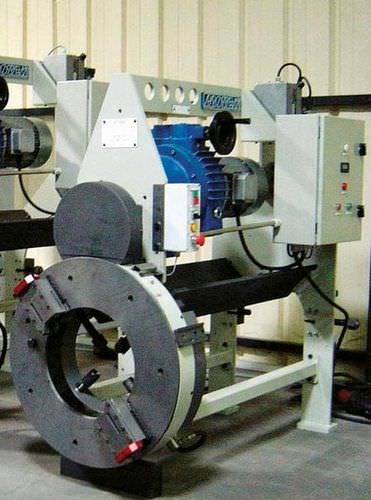

metal cutting machine / for tubes / CNC / chamfering
TNO PROTEM

{{requestButtons}}

Characteristics

  • Material:

    for metal

  • Product handled:

    for tubes

  • Control type:

    CNC

  • Associated function:

    chamfering

  • Tube diameter:

    Min.: 114 mm

    Max.: 914 mm

Description

The rapid, accurate, and smooth tube cutting and beveling machines from PROTEM – TNO series – provides the fastest cutting rate midst the spectrum of machines. It does away with the need for grinding finish and complicated settings. With a sturdy setup, yet portable design, it fits all your on-site or production-line piping and tubing needs. Provided in three working ranges, viz. 4–12”, 12–24”, and 24–36”, the TNO series cutters work with 400 V/50 Hz supply and offer a work span of 1700 mm. TNO 4–12”, 12–24”, and 24–36” vary in height (1964, 2118, and 2515 mm, respectively), width (1000, 1210, and 1510 mm, respectively), and weight (~1100, 1200, and 1600 kg, respectively). TNO 12–24”, designed for heavy-duty wall-pipe cutting, offers rotation speeds in the range 4.2–12.8 m/min for cutter diameters of 323.9 mm.
