portable chamfering machine / radius / automatic
US25CA PROTEM

{{requestButtons}}

Characteristics

  • Type:

    portable

  • Applications:

    radius

  • Other characteristics:

    automatic

Description

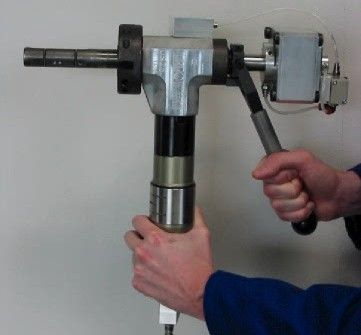

The US-CA series are US machines with automatic clamping device. They keep all the advantages of the US-series equipment and the automatic clamping makes them very useful for repetitive jobs like cut to length of tubes on exchanger plate.

Technical specifications :
Machining capacity : Ø25 mm OD – Ø90 mm OD
Clamping capacity : Ø25 ID - Ø107 mm ID
Specific shapes & angles : I, V, U, counterboring. Others on request
Clamping system : Automatic clamping system
Feed : 35 mm, with lever
Tool holder : Ø 90 mm (3,5")
Drive speed : 150 rpm off-load speed, 70 rpm nominal speed

Option :
Additional tool holder : Ø60mm , Ø120 mm
Smaller shaft : Ø12,5 mm (0.492") à Ø18mm (0.709")
Ø18 mm (0.709") à Ø25mm (1.023")
