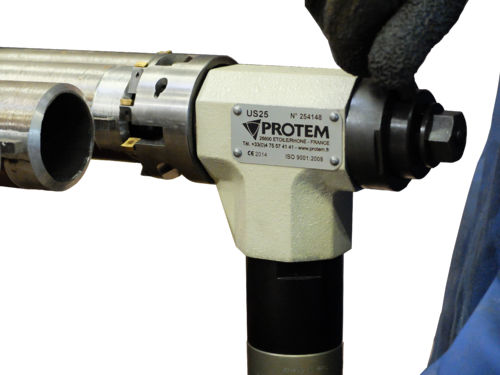

Pneumatic chamfering machine US25TA

for pipe ends

The TA option replace the tool holder of the US-series machines by a milling head. This option is designed to perform weld preps and to excavate membrane walls. Both opera-tions, beveling and excavating, can be performed simultaneously. The machine is clamped inside the tube for a perfectly concentric clamping. Technical specifications : Machining capacity : Ø25 mm OD – Ø90 mm OD Clamping capacity Ø25 ID - Ø107 mm ID Specific shapes & angles : I, V, U, counterboring. Others on request Clamping system Manual Feed : 35 mm, with lever Tool holder : Ø 90 mm (3,5") Drive speed : 150 rpm off-load speed, 70 rpm nominal speed Smaller shaft : Ø12,5 mm (0.492") à Ø18mm (0.709") Ø18 mm (0.709") à Ø25mm (1.023") The GR serie is an equivalent of the US-TA
