inflatable dock seal / isothermal
AH 36/37 ISO
Puertas Angel Mir

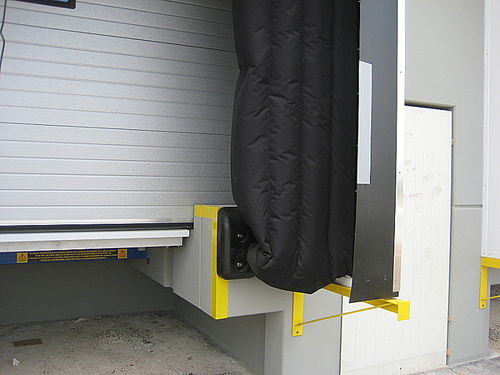

The dock shelter AH36/37 ISO is inflated by a fan motor to seal the head and side bags against both sides and the top of a vehicle body.
The head and side bags are made of 1000 denier Cordura, a hard wearing waterproof material with a high tear resistance, manufactured from woven nylon coated with polyurethane.
Heavy duty 2-ply rubber type material 3.5mm thick, is used for the storage curtains.
The side bags have an integral lower return bag to complete the seal at the bottom of the vehicle body.
The body is manufactured from 50mm thick insulated panel and the standard colour to both sides of the panel is white.
Other colours are available as an option.
