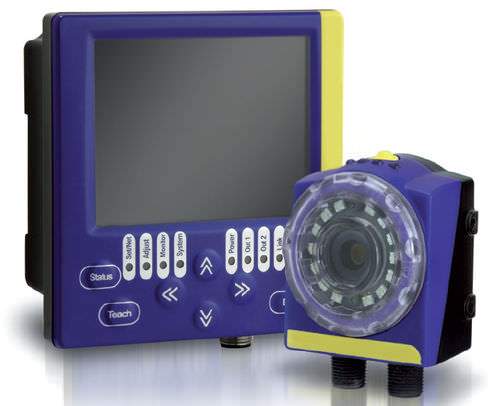

inspection camera / monochrome / CCD
Pulsotronic

Add to MyDirectIndustry favorites
inspection camera / monochrome / CCD inspection camera / monochrome / CCD
{{requestButtons}}

Characteristics

  • Function:

    inspection

  • Spectrum:

    monochrome

  • Sensor:

    CCD

Description

Intelligent cameras contain the interfaces and the image processing unit in the camera housing. Thus the user does not need a PC for operation. In addition to the camera systems we provide several software versions, that will be configurated according to your specific requirements on request. We realise simple camera systems as well as complex image processing solutions and we take charge of integrating the system in your application.

IPS 515 / 535 / 545 / 535CW / XS / LS

Available resolutions area cameras 640 x 480 pxl up to 1280 x 1024 pxl
Resolution line scan camera 2048 x pxl
Monochrome and colour cameras
Sensors: 1/2" CCD, 1/3" CCD, 1/4" CCD, 1/3"CMOS
Vision frequency: 8 - 75B/s
Memory D-Ram: 32 - 128MB
Memory Flash: 16MB

lightings and other accessories on request

Operating temperature: 0°C - 45°C
Operating voltage: 24V DC

External connections:
Jack RJ-45 10/100 Megabit Ethernet TCP/IP Protokoll, Jack 10 Pin to Break-Out-Board including voltage supply and 8 freely configurable digital inputs/outputs (24V DC), NPN-inputs, PNP- outputs, signals HIGH-aktive, Trigger/Strobe, max. current input 1,5mA, max. current output 50 mA

(further vision systems on www. pulsotronic.de)
