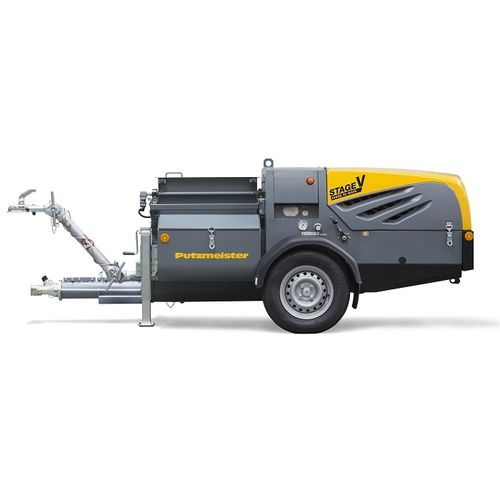

Worm gear pump SP 11 THF
for cementdiesel enginemobile

worm gear pump
worm gear pump
Add to favorites
Compare this product


Characteristics

Fluid
for cement
Operation
diesel engine
Technology
worm gear
Mobility
mobile
Applications
filling
Material
plastic
Other characteristics
adjustable-flow
Flow

Min.: 0 m³/h
(0 ft³/h)

Max.: 15 m³/h
(529.72 ft³/h)

Pressure

20 bar
(290.075 psi)

Head

30 m, 80 m
(98'05" , 262'05" )

Power

18.5 kW
(25.15 hp)

Length

3,260 mm
(128 in)

Width

1,420 mm
(55.91 in)

Height

1,160 mm
(45.67 in)

Weight

750 kg
(1,653.47 lb)

Description

Compliant with Stage V emission standard, the SP 11 THF can easily cover distances of 80 m or heights of 40 m. The sieve and vibrator have been improved to achieve a continuous material flow, even when conveying screed containing plastic or metal fibres. The maximum delivery rate of 15 m³/h and the installed equipment provide all you need to professionally convey self levelling floor screed. Wear and maintenance parts are easy to access, which makes cleaning and the replacement of wear parts more convenient. You can therefore reduce setup times and increase working productivity. Key Features Large hopper with safety grill - ideal to be filled by truck mixer Extremely lightweight, impact resistant plastic hood Integral 100 bar high-pressure cleaner Central, easily adjustable support leg with low drawbar load Infinitely adjustable delivery rate Large tool box (100 l) Excellent soundproofing due to sound insulated engine CE conformity meets all safety standards in the EU Easy access makes all parts easy to service Grille with vibrator for improved material flow
