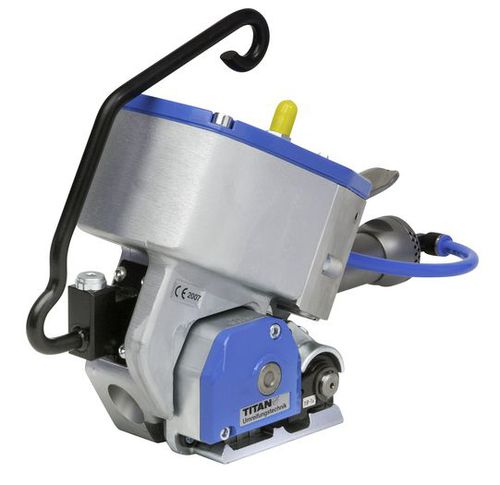

Pneumatic strapping tool PKE

for steel straps

The fully pneumatic hand-held tool PKE from TITAN allows all-round easy use. Fully pneumatic means that both tensioning and joining are done pneumatically and no high effort is needed on the part of the operator. This makes it the ideal stationary device for high strapping rates. It is possible to join steel straps of 13, 16 and 19 mm preferably on flat packages with PKE using a tensioning force of up to 7,000 N without seals. By the way: Besides the exemplary user-friendliness, the TITAN hand-held tools of the E series impress with their high availability. Technical Data : • Kind of drive (tensioning) : Pneumatic • Tension force : up to 7,000 N • Kind of drive (sealing) : Pneumatic • Strap feeding speed : 0.15 m/s • 0.5 ft/s • Dimensions : 390 x 150 x 270 mm (L x W x H) • 390 x 163 x 270 mm (L x W x H) (PKE-HD) • 15.4 x 5.9 x 10.6" (L x W x H) • 15.4 x 6.4 x 10.6" (L x W x H) (PKE-HD) • Weight : 11.5 kg 11.4 kg (PKE-HD) • 25.3 lb • 25.1 lb (PKE-HD) • Air pressure : min. 5 bar flow pressure (for 19 x 0,63 mm MEGABAND®) • max. 6 bar flow pressure • min. 5 bar flow pressure (for 3/4" x 0.025" MEGABAND®) • max. 6 bar flow pressure • Air consumption • (during tensioning) : 0.6 m³ / min. • 21.18 ft³ / min. • Cross-section : information currently not available • Handarm vibration : < 2.5 m/s² • Noise level : 78 dB (A)
