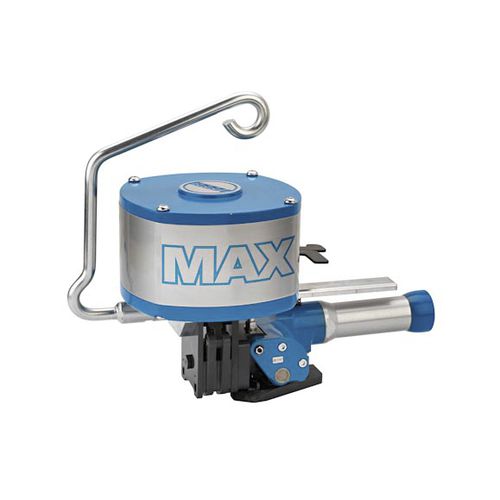

The performance values of the MAX hand-held tool speak for themselves: With up to 8,000 N, the pneumatic motors of MAX develop an enormous tensioning force. The tension force is held consistently thanks to a return stop after joining.
MAX is designed for steel straps up to 32 mm wide that are closed by a seal with double notch. Its weight of around 11 kg is exemplary in this performance class. Therefore, MAX is particularly suitable as a light-weight partner for heavy-duty applications such as pipe and wire assemblies, slit coils and coils.
These applications require not only a tool equally light and powerful, but also one that can do the job with ease and reliably under adverse environmental conditions. MAX accepts this challenge:
Design and technology speak for themselves.
Technical Data :
• Kind of drive (tensioning) : Pneumatic
• Tension force : max. 8,000 N (adjustable)
• Kind of drive (sealing) : Pneumatic
• Seal
• (Type) : RSK 19 ; 25 ; 32
• Strap feeding speed : 0.11 m/s
• 0.36 ft/s
• Dimensions : 450 x 195 x 300 mm (L x W x H)
• 17.7 x 7.7 x 11.8" (L x W x H)
• Weight : 11,7 kg
• 25.8 lb
• Air pressure : min. 5 bar flow pressure (for MEGABAND®)
• max. 6 bar flow pressure
• Air consumption
• (during tensioning) : 11 Nl / s
• Air consumption
• (during sealing) : 6 Nl / s
• Cross-section : G 1/4 "
• Handarm vibration : information currently not available
• Noise level : 76 dB (A)
