Friction torque limiter SK2 seriessafetywith elastic couplingspring
Add to favorites
Compare this product
Characteristics
- Operation
- friction
- Other characteristics
- safety, with elastic coupling, spring
- Torque
Min.: 0.1 Nm
(0.0738 ft.lb)Max.: 1,800 Nm
(1,327.6119 ft.lb)- Diameter
Min.: 3 mm
(0.12 in)Max.: 80 mm
(3.15 in)
Description

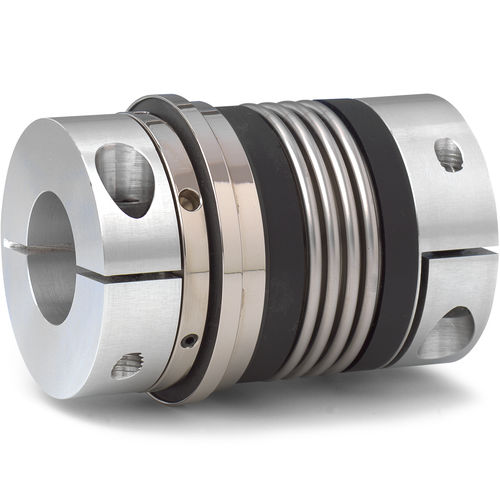

Torque limiter with clamping hub and bellows coupling
Material:
Bellows: high grade stainless steel
Safety system: hardened steel
Clamping hubs:
up to size 80 – aluminium
size 150 and up – steel
Temperature range:
-30° C to +100° C (-22° F to +212° F)
Design:
Two conical clamping assemblies with six tightening screws each
Safety system: spring loaded ball-detent principle
Available function systems:
W = Single position / automatic re-engagement (standard)
D = Multi-position / automatic re-engagement
G = Load holding / load blocking
F = Full disengagement / manual re-engagement
Service life
R+W bellows couplings are fatigue resistant and wear free for an infinite service life, as long as the technical limits are not exceeded
Fit clearance
Overall shaft / hub clearance of 0.01 – 0.05 mm
Special solutions
Various materials, tolerances, dimensions and performance ratings available for custom applications on request
ATEX (Optional)
For use in hazardous zones 1/21 and 2/22, the torque limiter has been authorized under directive 94/9/EG and is available with certification
