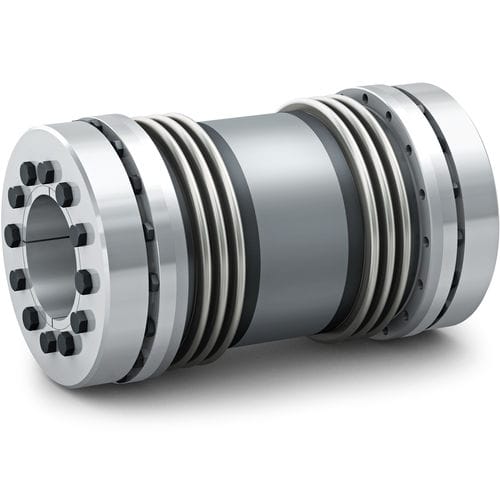

Bellows coupling BX6 seriesfor high torqueflange
Add to favorites
Compare this product
Characteristics
- Type
- bellows
- Other characteristics
- for high torque
- Installation system
- flange
- Torque
Max.: 150,000 Nm
(110,634.3224 ft.lb)Min.: 10,000 Nm
(7,375.6215 ft.lb)
Description
Bellows coupling with removeable conical clamping ring hub
Properties
compact and simple design
high misalignment compensation
integral support system (size 25 and up)
Temperature Range
-40 bis +300° C (-40 °F to +572 °F)
Design
Both side with removable clamping hubs including conical clamping ring system
Spacer between bellows (optional variable length)
Welded bellows-hub connection
Material
Hubs: steel
Bellows: highly flexible high grade stainless steel
Service life
R+W bellows couplings are fatigue resistant and wear free for an infinite service life, as long as the technical limits are not exceeded
Fit clearance
Overall shaft / hub clearance of 0,03 – 0,08 mm
Special solutions
Various materials, tolerances, dimensions and performance ratings available for custom applications on request
ATEX (Optional)
For use in hazardous areas
