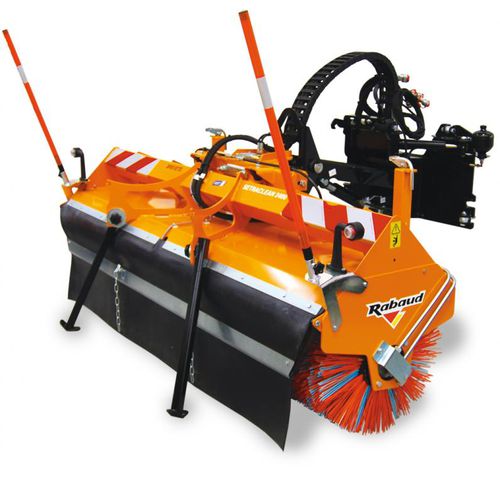

vehicle-mount sweeper / hydraulic
SETRACLEAN series RABAUD

{{requestButtons}}

Characteristics

  • Configuration:

    vehicle-mount

  • Motor type:

    hydraulic

  • Working width:

    Min.: 2,100 mm

    Max.: 2,400 mm

Description

2 models for sweeping widths of 2.10m or 2.40m.

Adaptable on DIN or SETRA plate (NF 98-790) with single-acting hydraulic lifting.

Polyester or mixed brush with beveled reinforced mudflap, height adjustable.

Reinforced frame for intensive works.

Angling (hydraulic in en option) +/-45°, with hydraulic safety.

Side-shift (hydraulic in option) +/-500mm with the parallelogram.

Mechanical swinging +/-5% with axis/pivot mounted in the brush axis for horizontal brush position.

2 wheels Ø 250mm tyre, swiveling 360°, adjustable.

3 storage support stands one of this is in the centre and adjustable in height (easier for coupling onto vehicle).

Option hydraulic collecting box: effective collecting box volume 350L or 400L (depending on model).
